ART.127

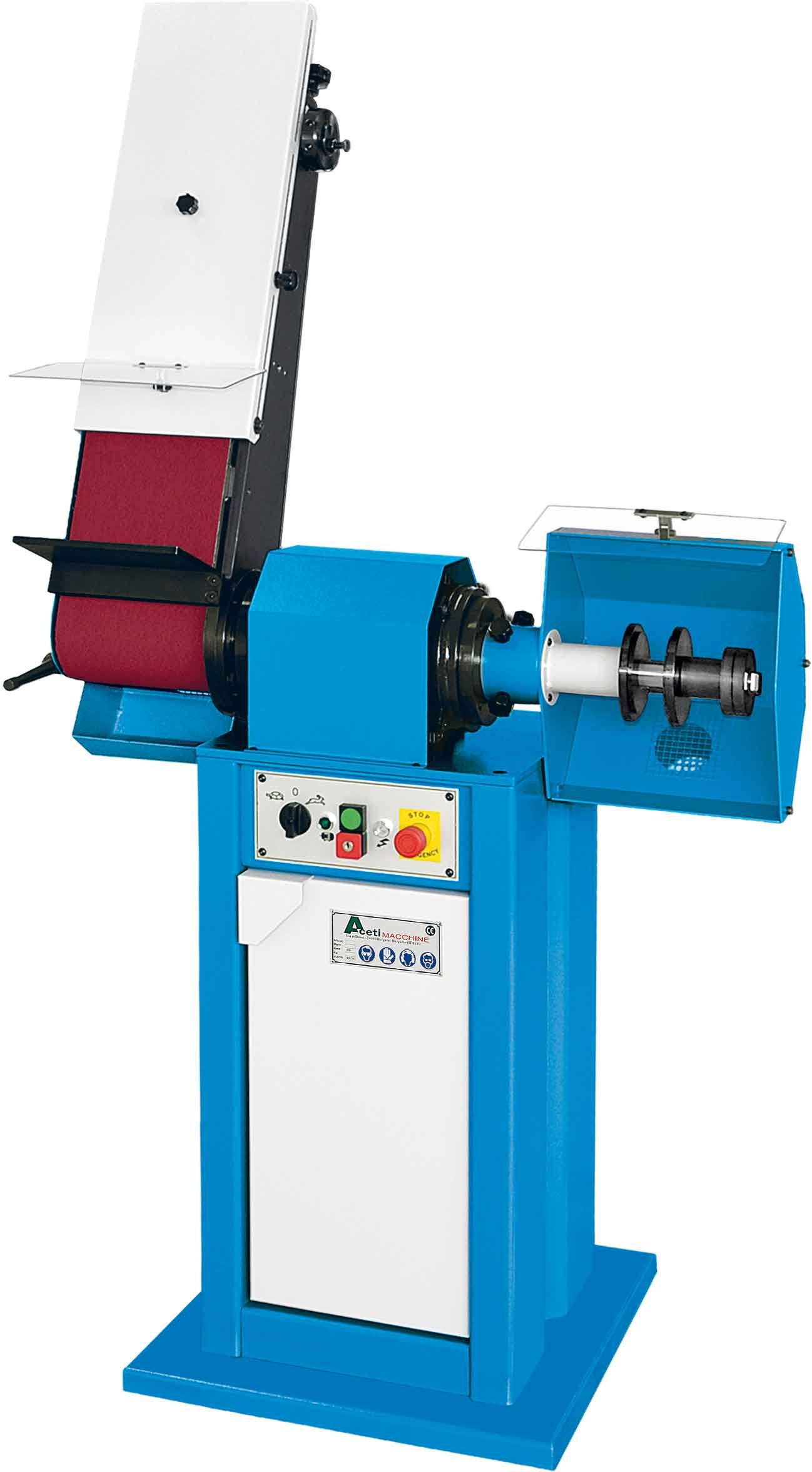

Belt grinding machine

ART.127 - Belt grinding machine

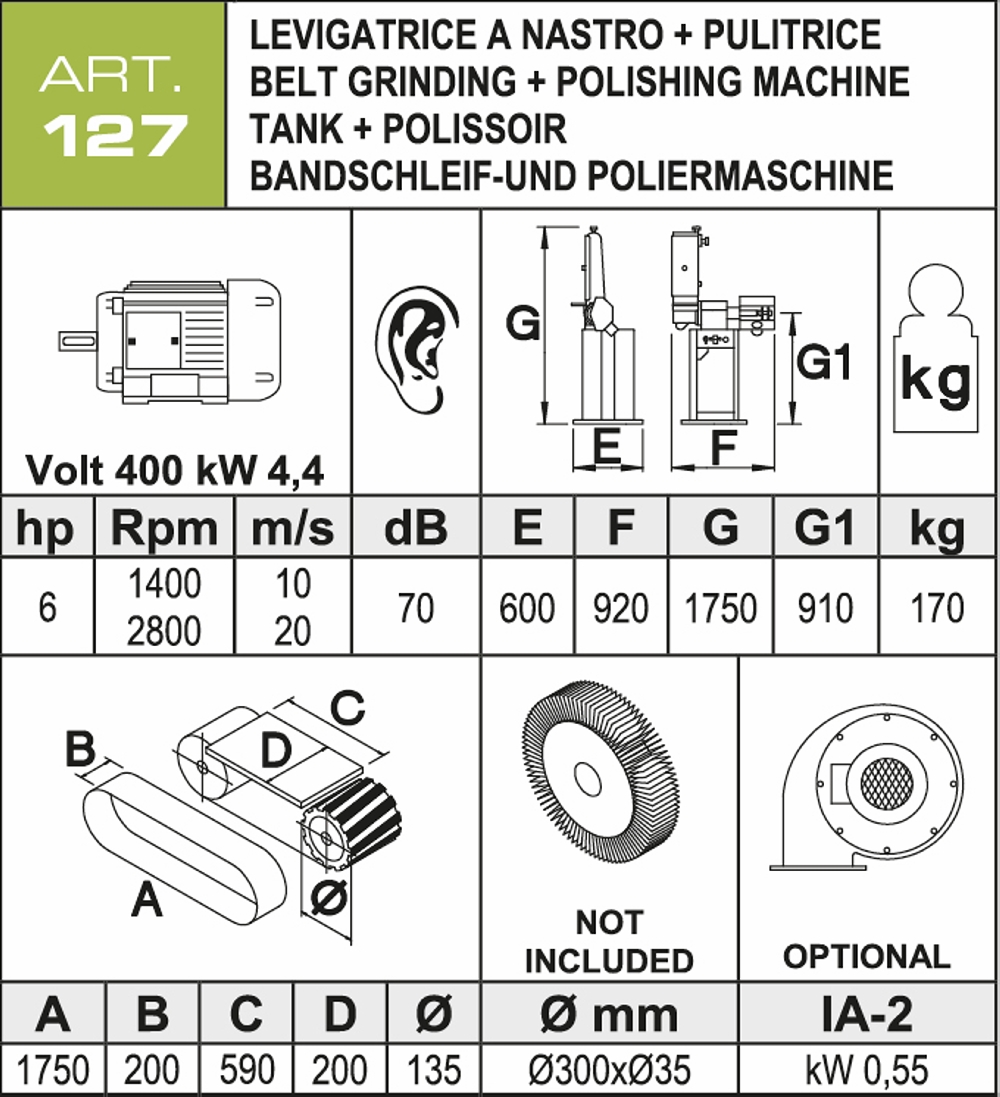

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
4,4 - 3,3 ( 6,0 - 4,5 )
kW ( hp )
Motor speed
2800 - 1400
rpm
Acoustic emission
70
dB
Overall dimension (Width x Depth x Height)
920 x 600 x H. 1750
mm
Weight standard machine
170
kg

Belt grinder unit

Abrasive belt dimension (wide x length)
200 x 1750
mm
Peripheral speed
20 - 10
m/sec
Dimension of working plane (behind abrasive belt)
200 x 590
mm
Driving wheel dimension
ø 135
mm
Orientable belt grinding arm
0 ÷ 90
°

Polisher - Buffer unit

Brush maximum external size
ø 300
mm
Motor shaft diameter
ø 35
mm
Brush maximum wide size
75
mm
Peripheral speed
44 - 22
m/sec

Standard Equipments

Machine respect CE stamp of compliance
Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.
Base
Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.
Electrical panel
Low voltage electric controls with padlock device integrated in the main electric switch.
Electronic brake card
Emergency stop with electronic motor braking with safety anti-reset function.
Motor
Motor 2 speeds
Orientable arm sander
Arm sander adjustable from 0 ° to 90 ° and intermediate positions.
Type of work
Three types of processing, in plan with support, on tyred wheel, on tyred wheel with support.
Work surface
Behind the abrasive tape has a durable floor in abutment replaceable steel over time.
Rubberized grooved wheel
Rubberized, grooved and balanced drive wheel for better drag of the abrasive belt.
Abrasive belt
Abrasive belt mounted on the machine ready for use.
Belt grinder cover
Carter sander with predisposition connection system.
Locking accessories
Locking and reducing steel flange for brush, flap wheel with spacers and clamping nuts.
Polishing cover
Carter adjustable for a comfortable and precise positioning of the operator and with predisposition connection system.
Anti-spark repair
Transparent protection arrester with friction joint.

Optional Equipments

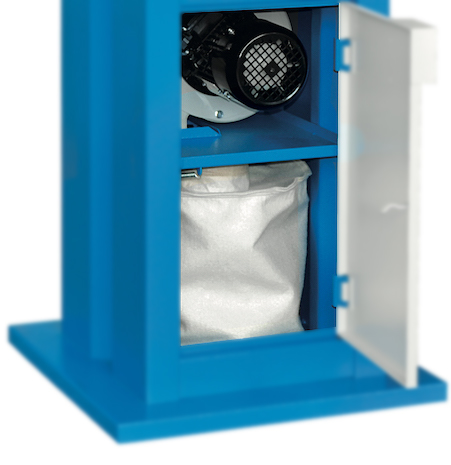

IA-2: DUST EXTRACTOR - TWO CONNECTIONS
cod. IA-2:  DUST EXTRACTOR - TWO CONNECTIONS
DUST EXTRACTOR kit with two suction mouth: complete of dust filter bag in flexible aluminum pipes and hose clamps. The extractor is mounted inside the base and wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
