ART.97

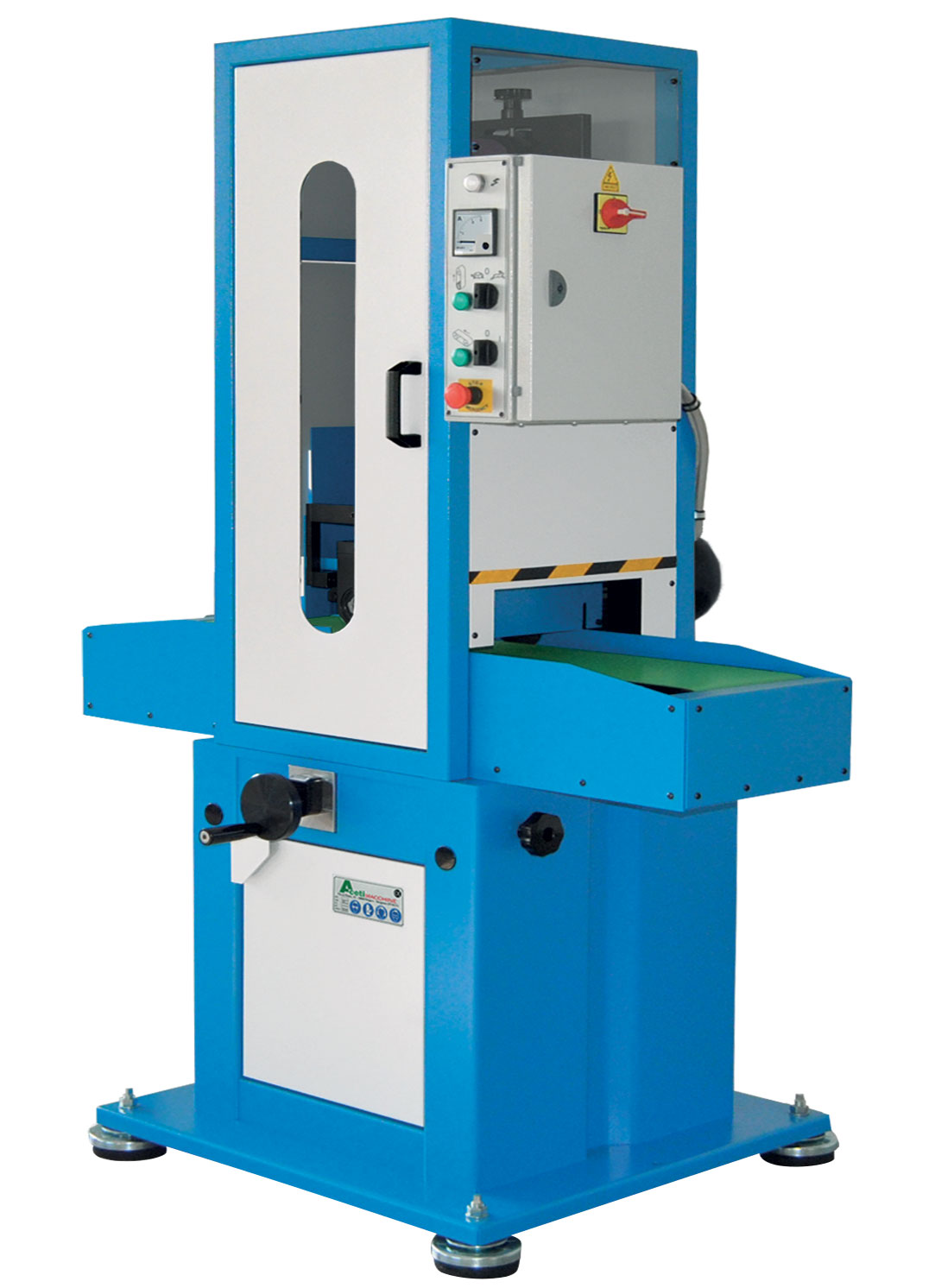

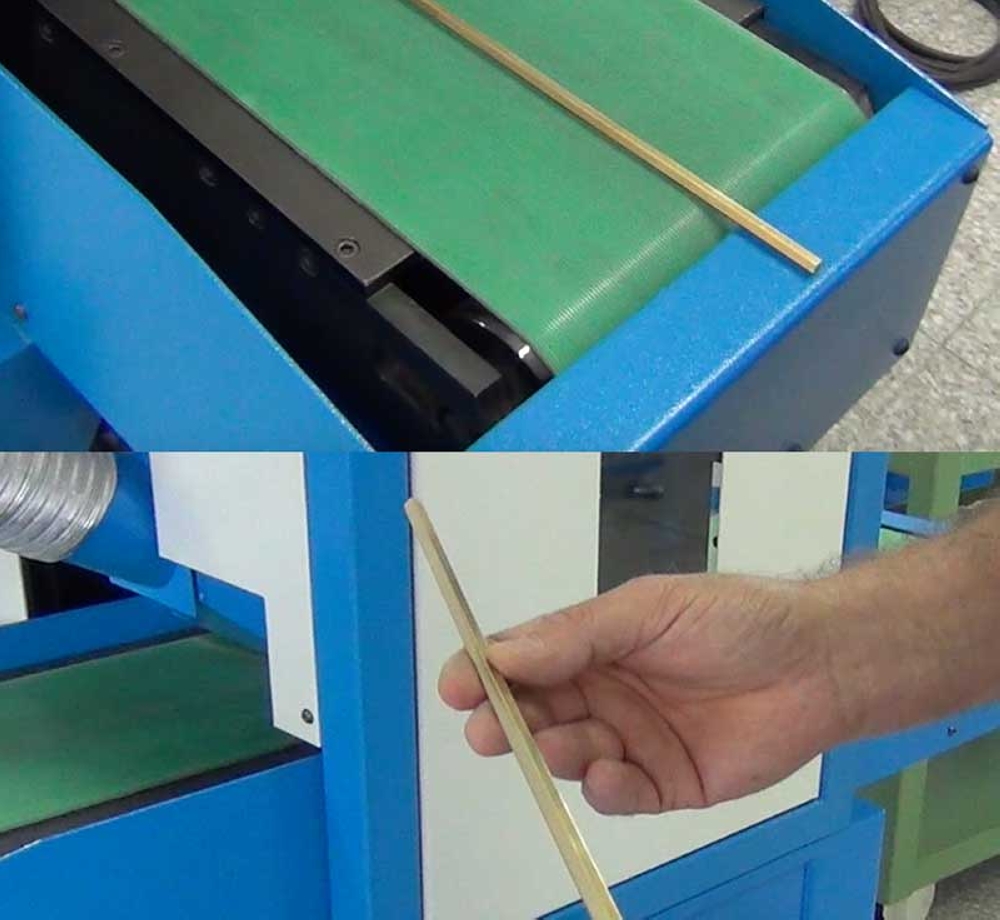

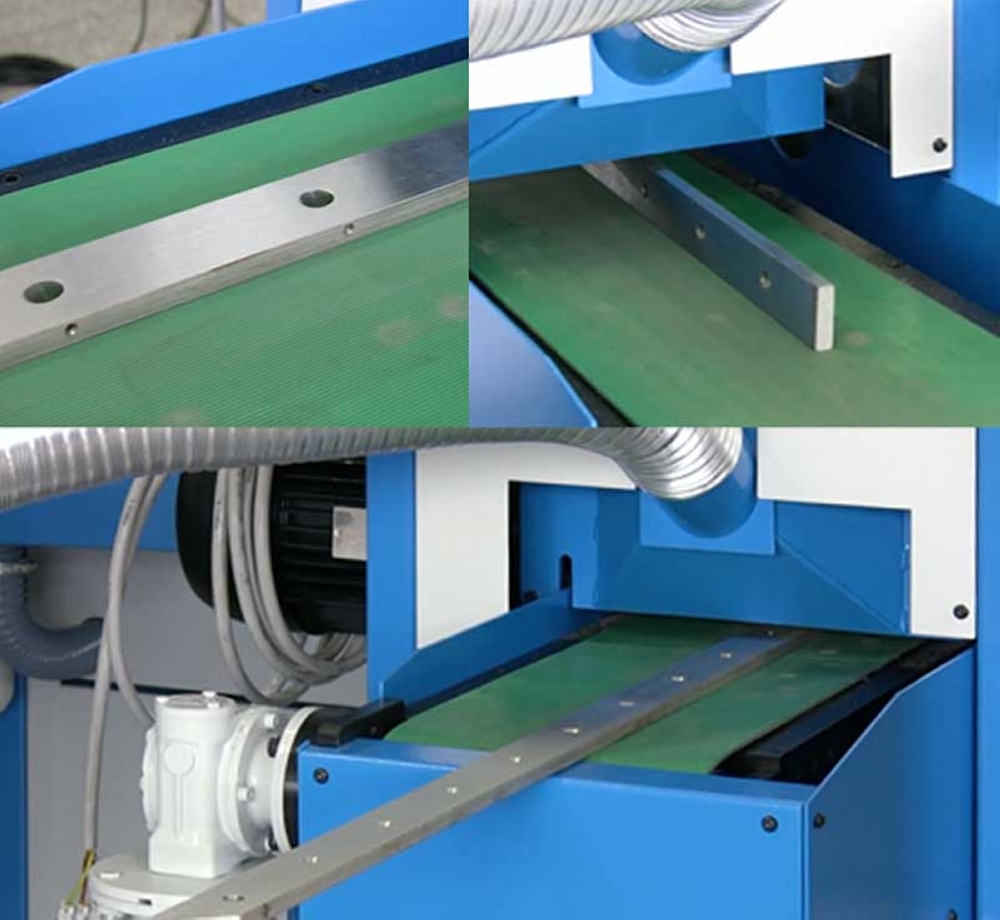

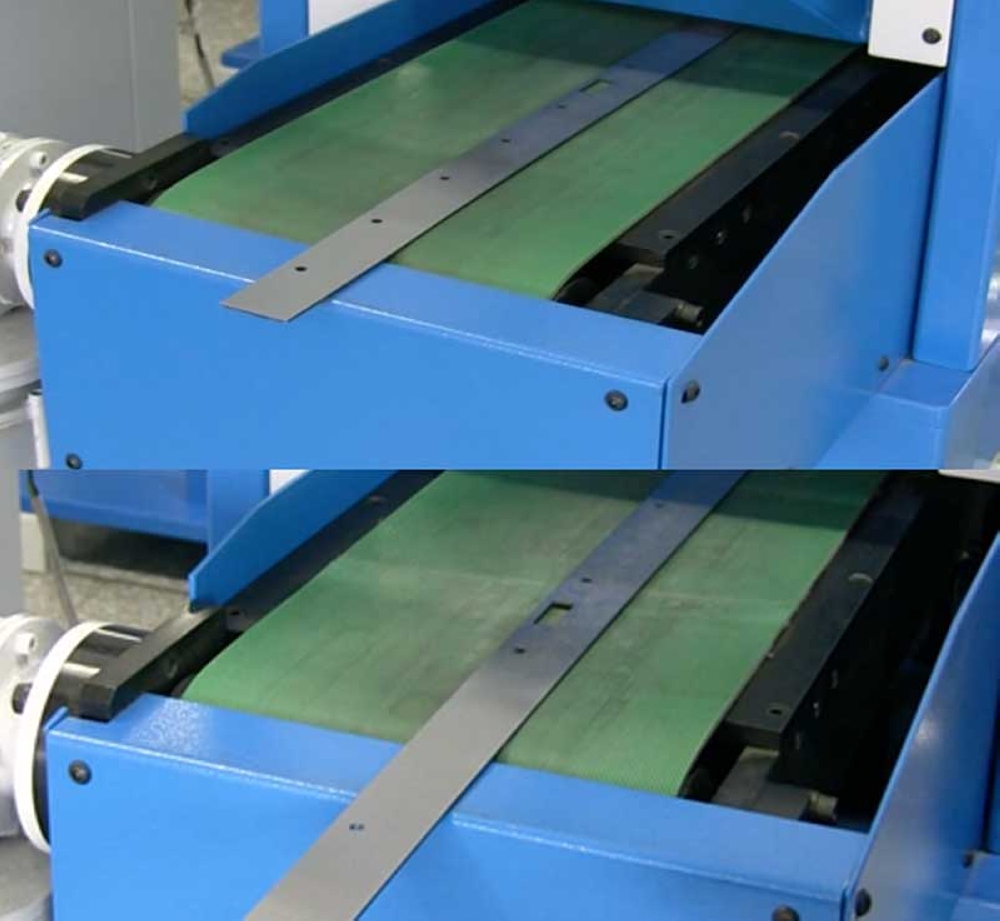

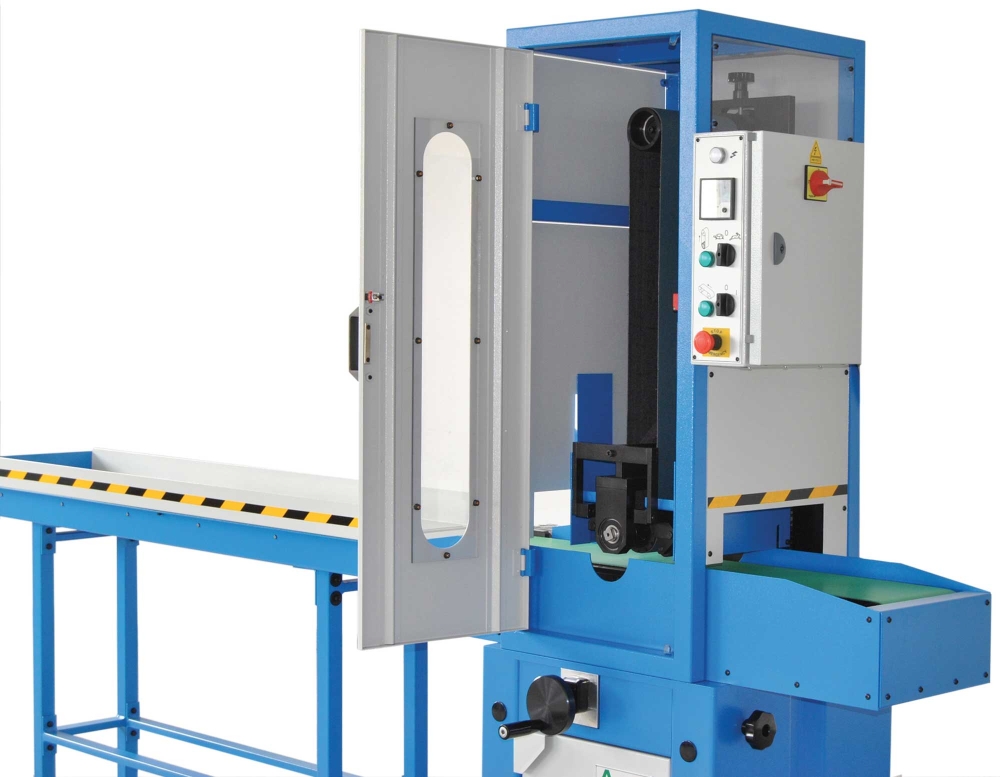

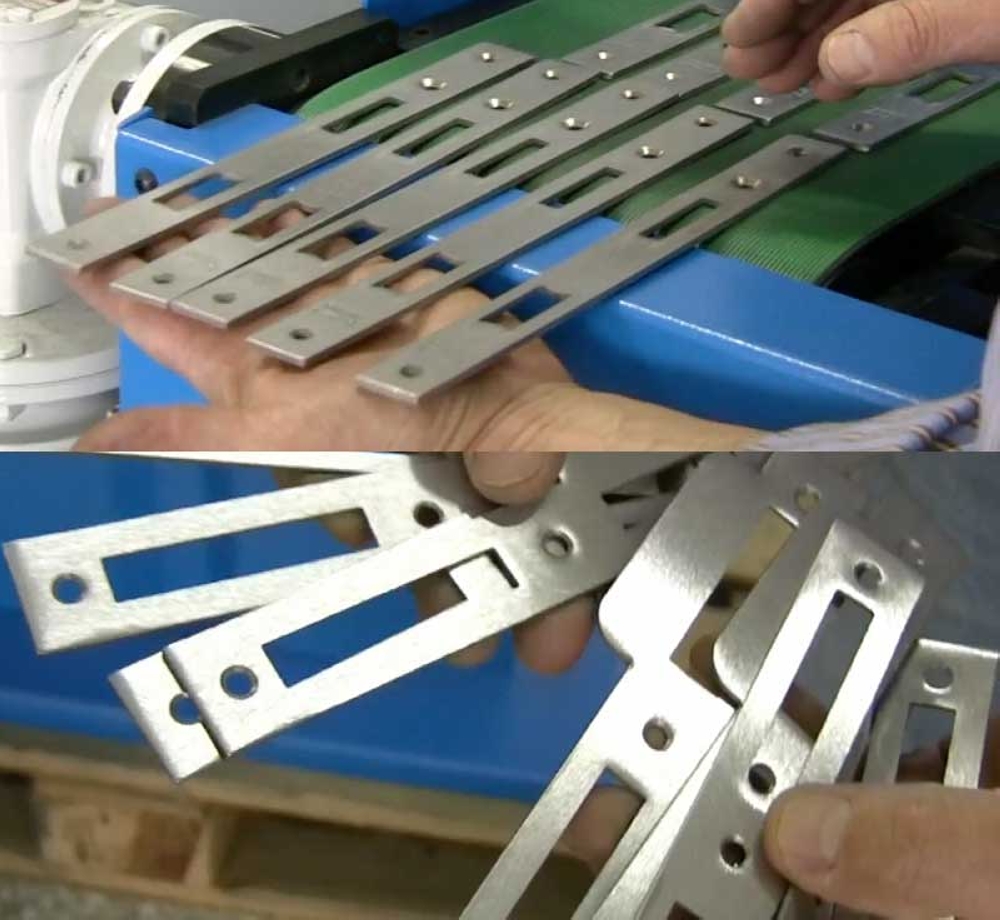

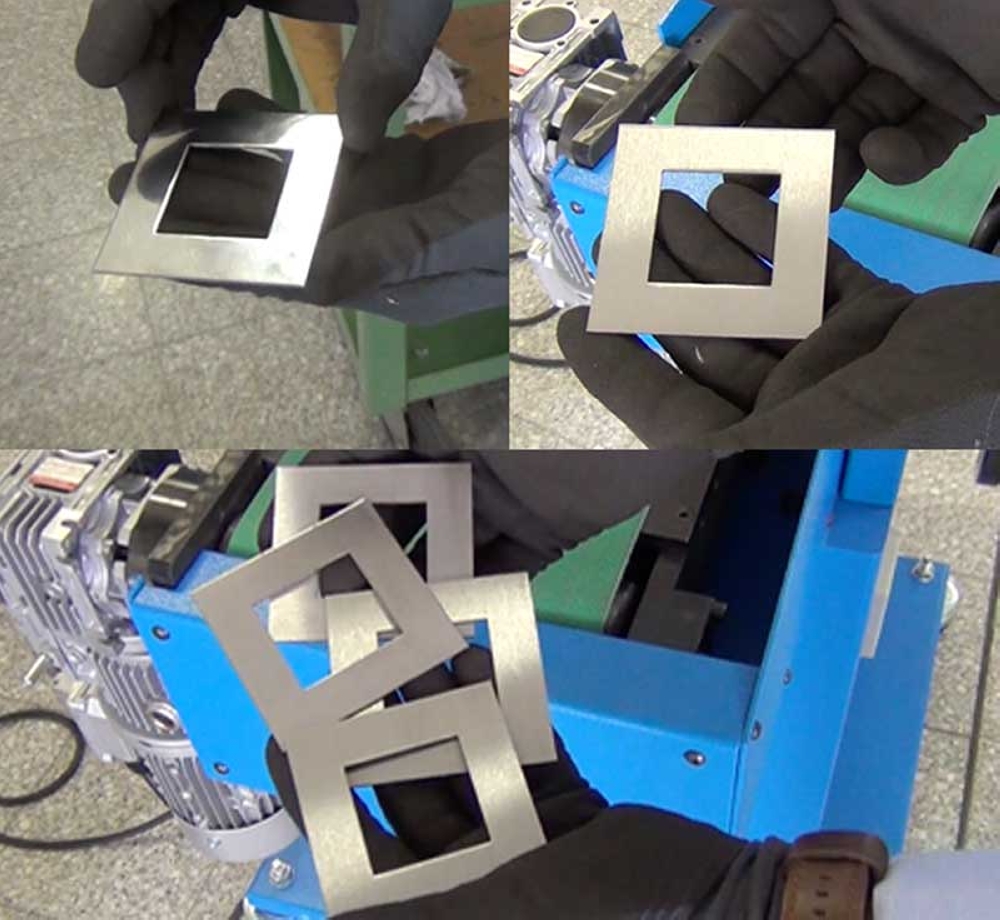

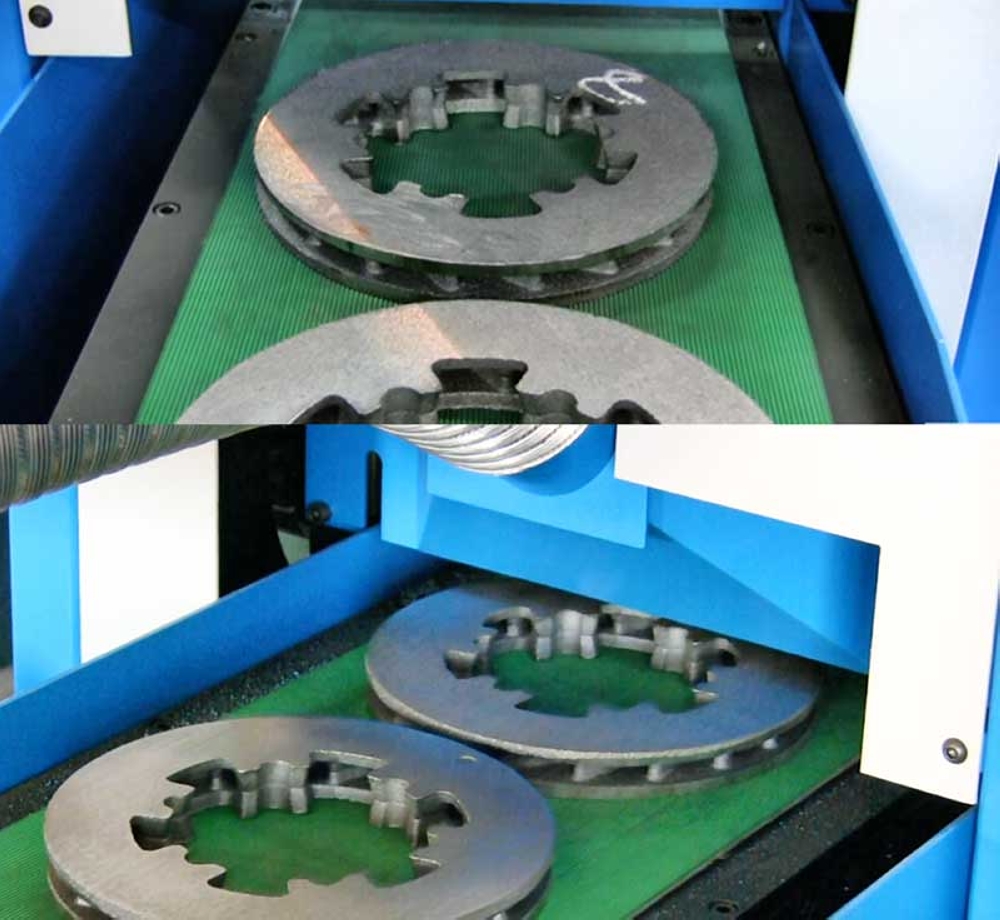

Polishing machine for flat surfaces by dry system | 1 Belt grinding unit

ART.97 - Polishing machine for flat surfaces by dry system | 1 Belt grinding unit

Video

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
5 ( 6,5 )
kW ( hp )
Motor speed
1400 - 2800
rpm
Overall dimension (Width x Depth x Height)
1250 x 870 x H. 1850
mm
Weight standard machine
570
kg
Quantity of abrasive belt
1
No.
Abrasive belt dimension (wide x length)
220 x 1750
mm
Peripheral speed
6 - 12
m/sec
Dimensions of grooved rubberized driving wheel (wide x diameter)
Ø80 x 220 | 60
mm
Belt conveyor dimension
220 x 2350
mm
Feeding speed of workpiece
min. 1 ÷ max. 10
m/min
Workpiece thickness allowed
min. 1 ÷ max. 125
mm
Workpiece length allowed
min. 120 ÷ max. 6000
mm
Workpiece width allowed
max. 220
mm

Standard Equipments

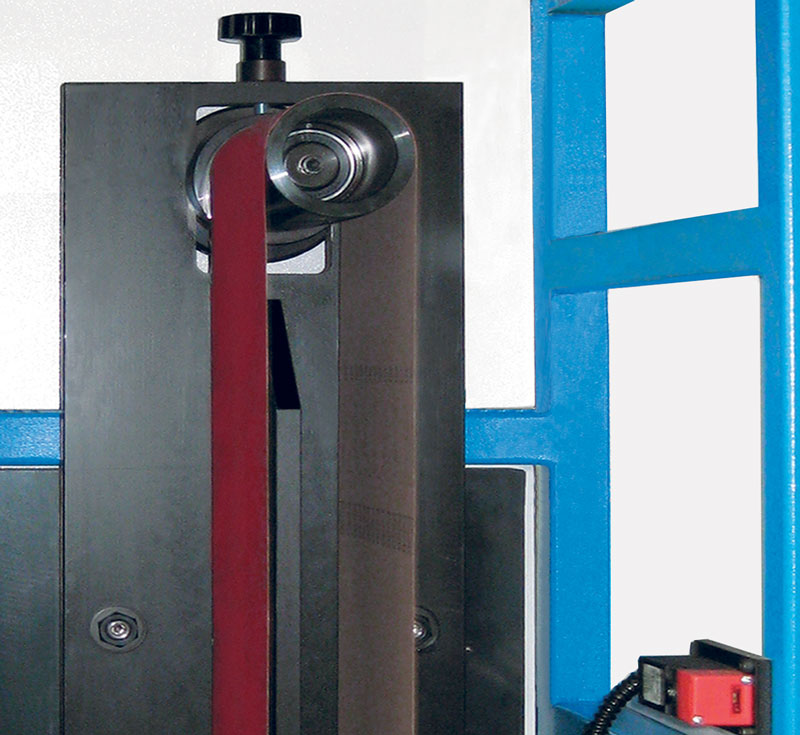

Tensioning of the abrasive belt
Tensioning of the abrasive belt

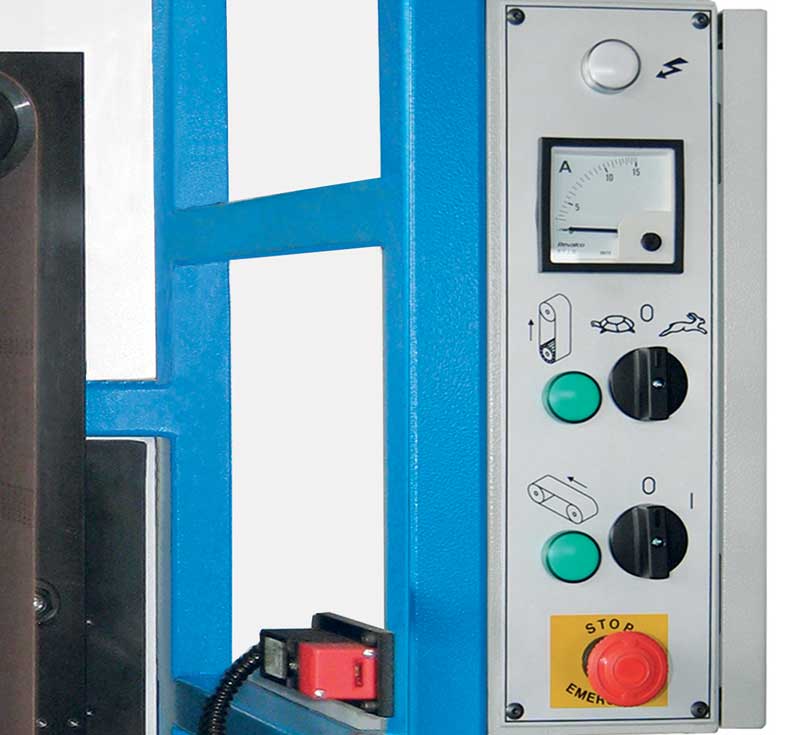

Low tension electrical panel
Low tension electrical panel

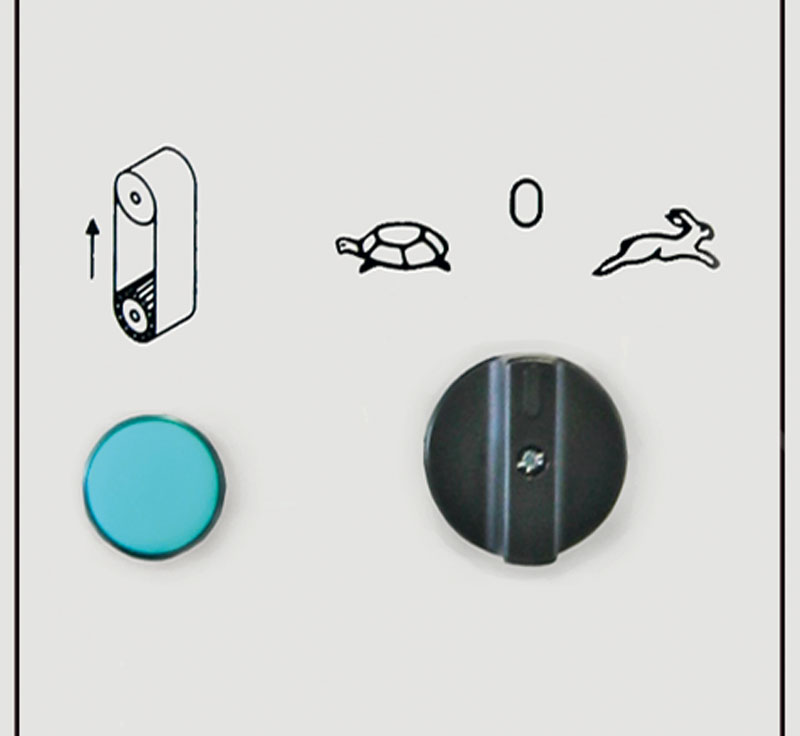

Double speeds motor
Double speeds motor

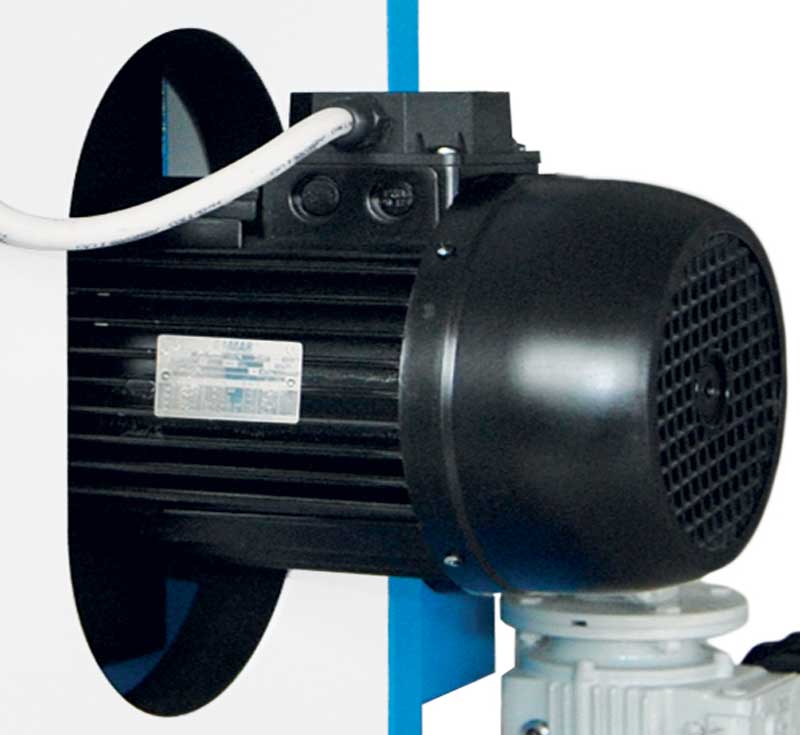

Electric motor with electronic brake
Electric motor with electronic brake

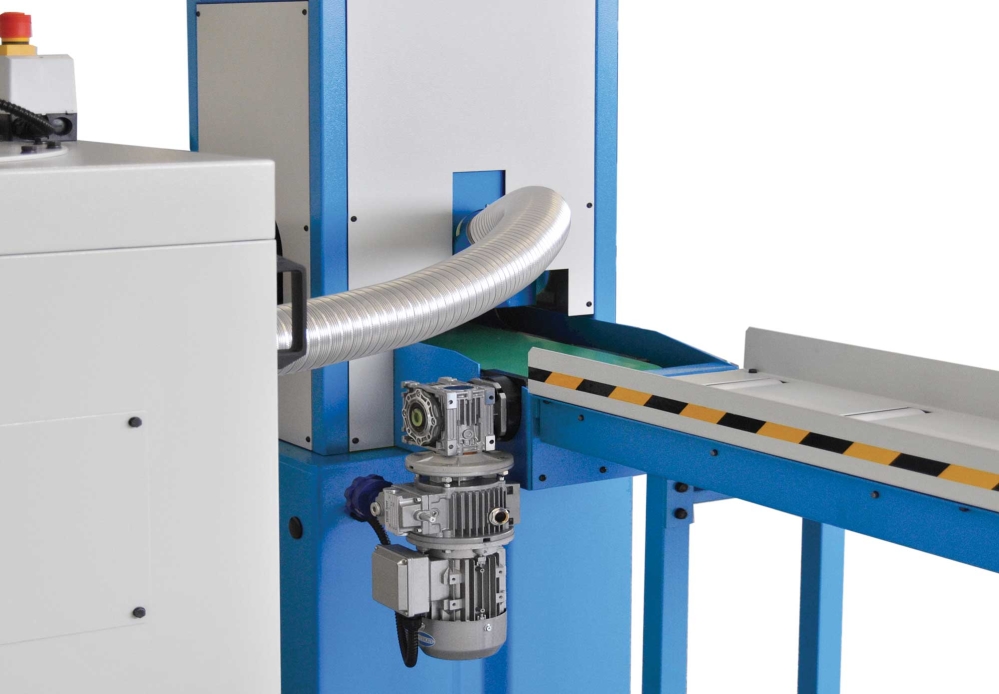

Adjustable feed speed
Adjustable feed speed

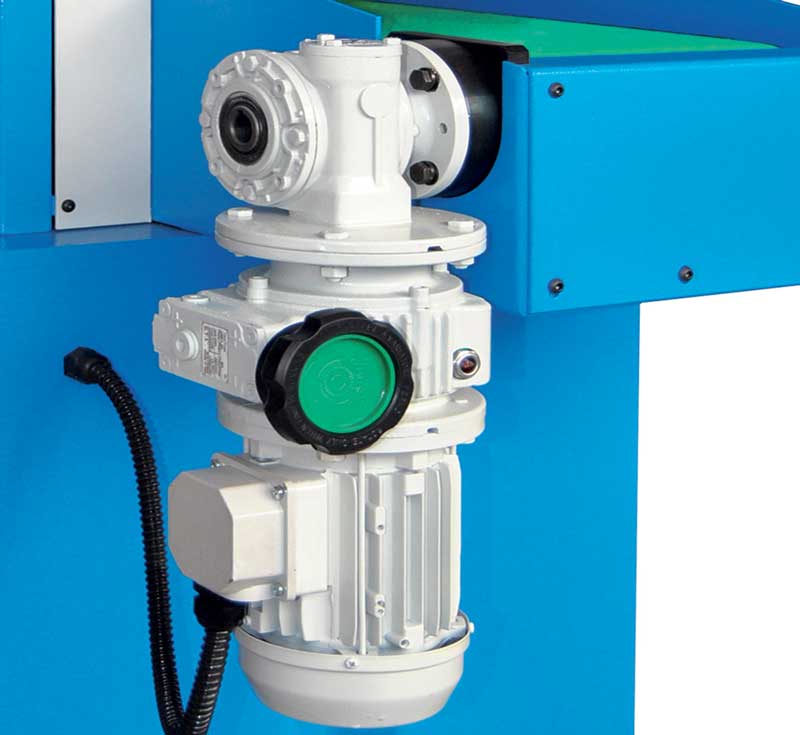

The conveyor belt is moved by a gearmotor with a mechanical variator to adjust the advancement speed of the parts from 1 to 10 m/min.
Thick reader
Thick reader

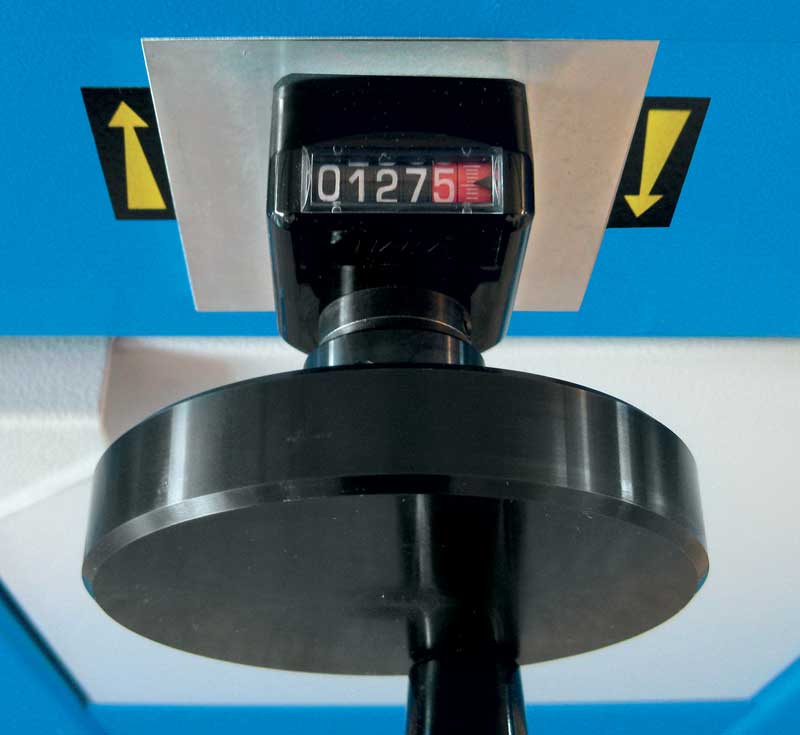

The position indicator with centesimal sensitivity (0.01 mm) is necessary for a precise adjustment of the grinding pass as well as useful for adjusting the height of the machine based on the thickness of the part to be processed. When the thickness changes, it is necessary to act on the handwheel that performs the movement of the grinding unit with respect to the conveyor belt.

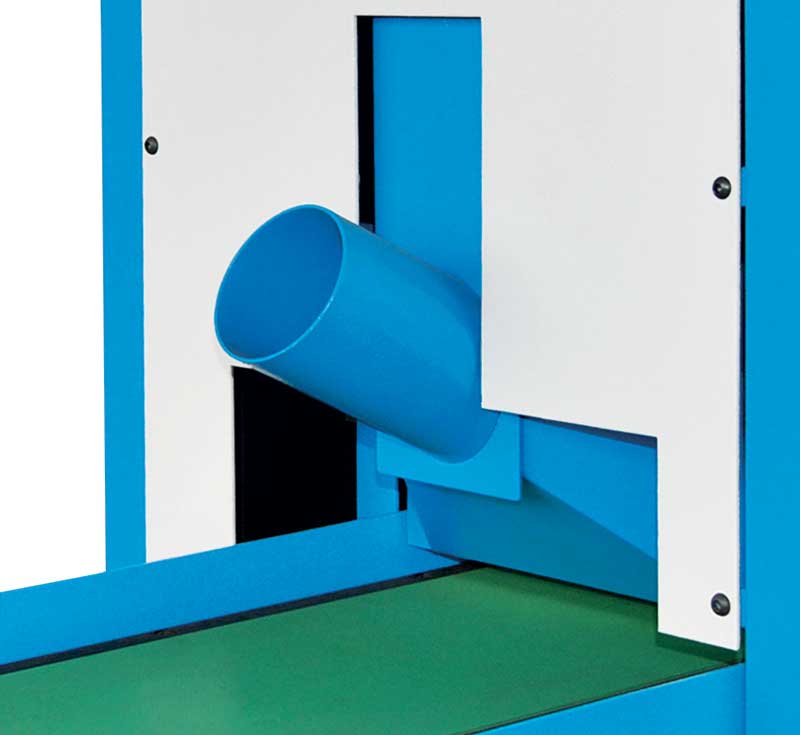

Suction hood with 1 suction mouth
Suction hood with 1 suction mouth
Anti-vibration feet of leveling
Anti-vibration feet of leveling
The strong base is fitted with anti-vibration damping support feet which allow leveling of the machine perfectly and to minimize vibrations during machining.
Rubberized and grooved contact wheel
Rubberized and grooved contact wheel
The rubberized contact wheel is grooved (hardness 60 Shore) for better traction of the abrasive belt and greater removal of the workpiece material. Before being mounted in the machine it is grinded on grinding machine for a homogeneous rotation and better processing at any cutting speed.

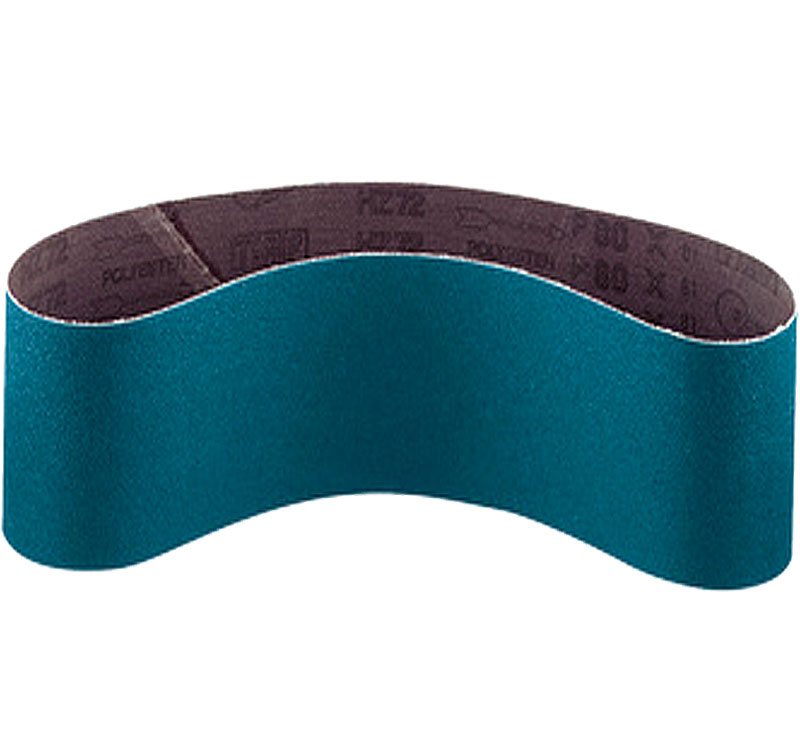

Abrasive belt
Abrasive belt
Machine respect CE stamp of compliance
Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.

Optional Equipments

INV.97: Inverter of speed adjustment of belt grinding unit
cod. INV.97:  Inverter of speed adjustment of belt grinding unit

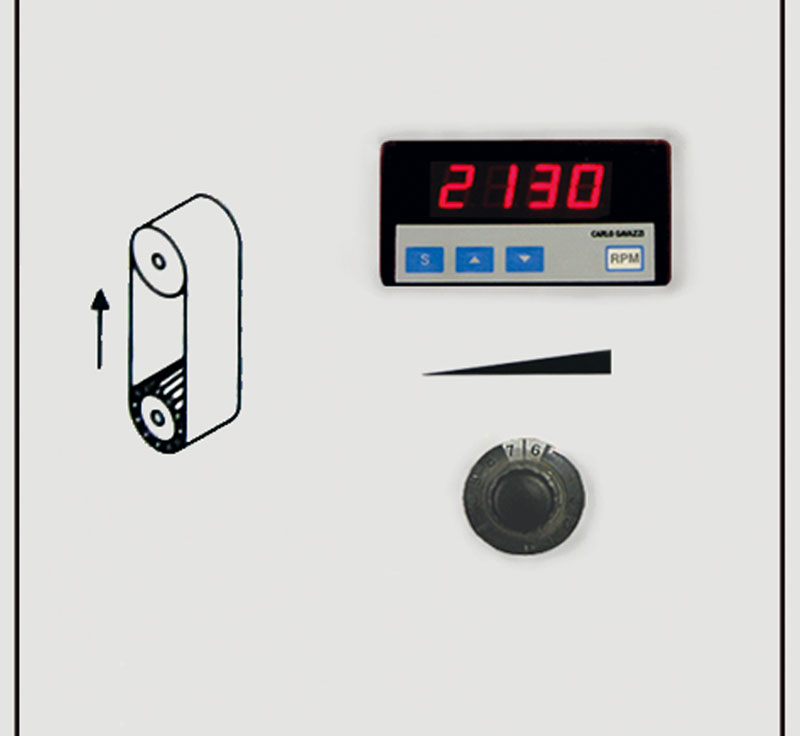

Extra charge for the addition of the inverter for the electronic adjustment of the abrasive belt speed from 150 to 3000 rpm and of the electric panel equipped with potentiometer, digital display and electric panel cooling filters. The inverter allows the operator to adjust the grinding speed most suited of the type of material and of the finishing level to be obtained.

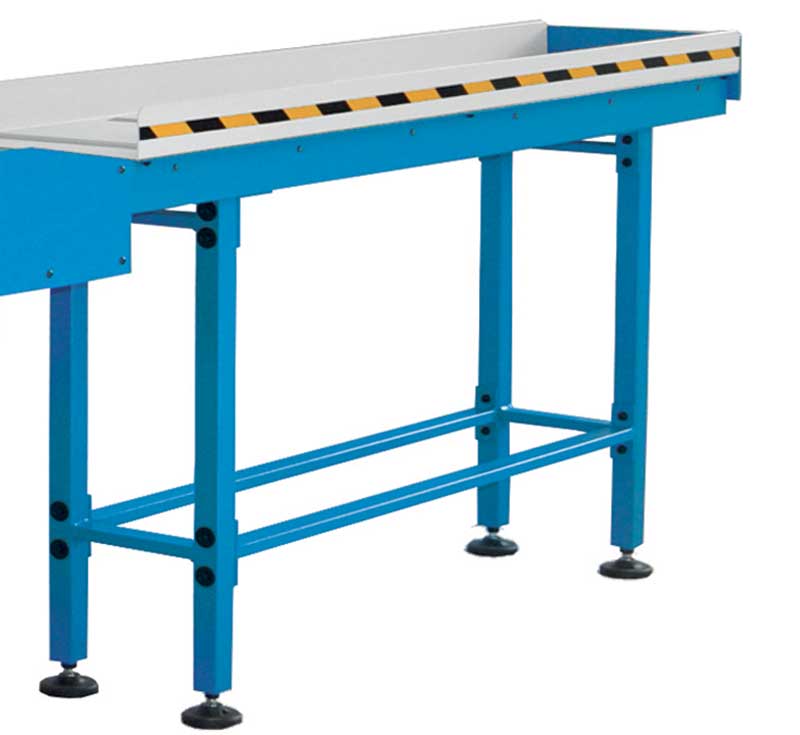

RUL.97: Roller table: module of 1,5 m
cod. RUL.97:  Roller table: module of 1,5 m
Roller table of workpieces support at entrance and/or exit adjustable with four self-leveling feet. It is equipped with rubber coated rollers to avoid damaging the machined parts. It is complete with drainer to contain the coolant and return it to the tank in addition to keeping the working environment clean.
CODIV: Contact wheels with different rubberizing
cod. CODIV:  Contact wheels with different rubberizing
It is possible to mount different contact wheels into the machine according to the types of machining to be performed. We can supply smooth rubber wheels, grooved with different types of grooves, different hardness of rubber coating (Shore) as well as coatings in different materials (black vulcanized rubber, vulkollan etc.).
ASP.01-HP2: Dust extractor by cyclone system
cod. ASP.01-HP2:  Dust extractor by cyclone system
Wheeled dust extractor with cyclone system. It is built entirely of steel and has no dust filter bag. The suction takes place by means of the centrifugal force generated by the cyclone which conveys the dust into the underlying steel drawer that collects and holds it. In the case of dry machining it is necessary to connect the machine to a strong vacuum cleaner such as this which keeps the conveyor belt clean from the emery.
Tooteleht

Consumables

148/D-40: Abrasive belt
cod. 148/D-40:  Abrasive belt
Specific abrasive belt for wet working.Various grains: P36÷P400
148/D-60: Abrasive belt
cod. 148/D-60:  Abrasive belt
Specific abrasive belt for wet working.Various grains: P36÷P400
148/D-80: Abrasive belt
cod. 148/D-80:  Abrasive belt
Specific abrasive belt for wet working.Various grains: P36÷P400

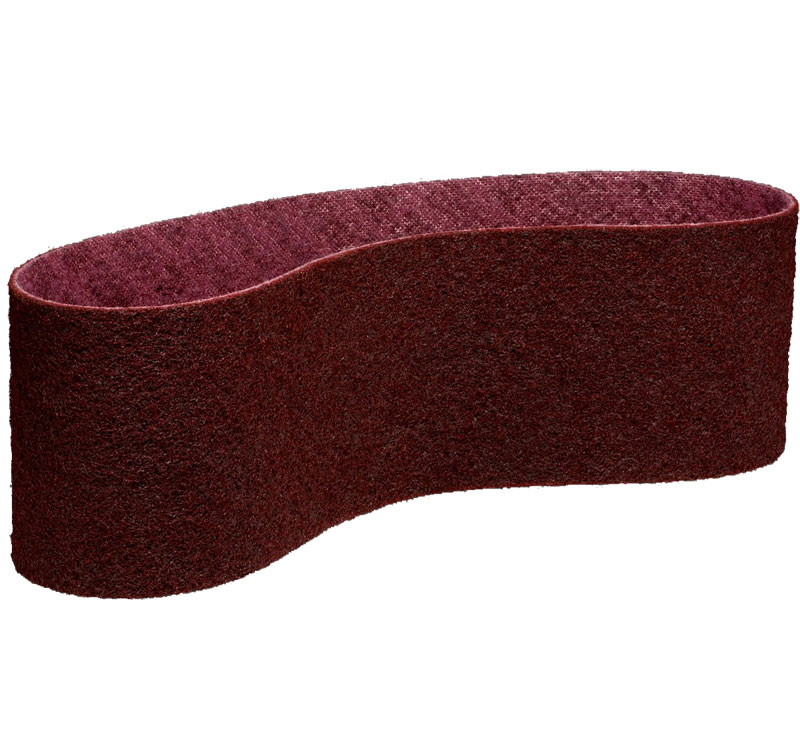

149/C: 'Scotch-brite' belt
cod. 149/C:  'Scotch-brite' belt
Specific 'Scotch-brite' belt for wet working. Various grains.
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
