ART.22

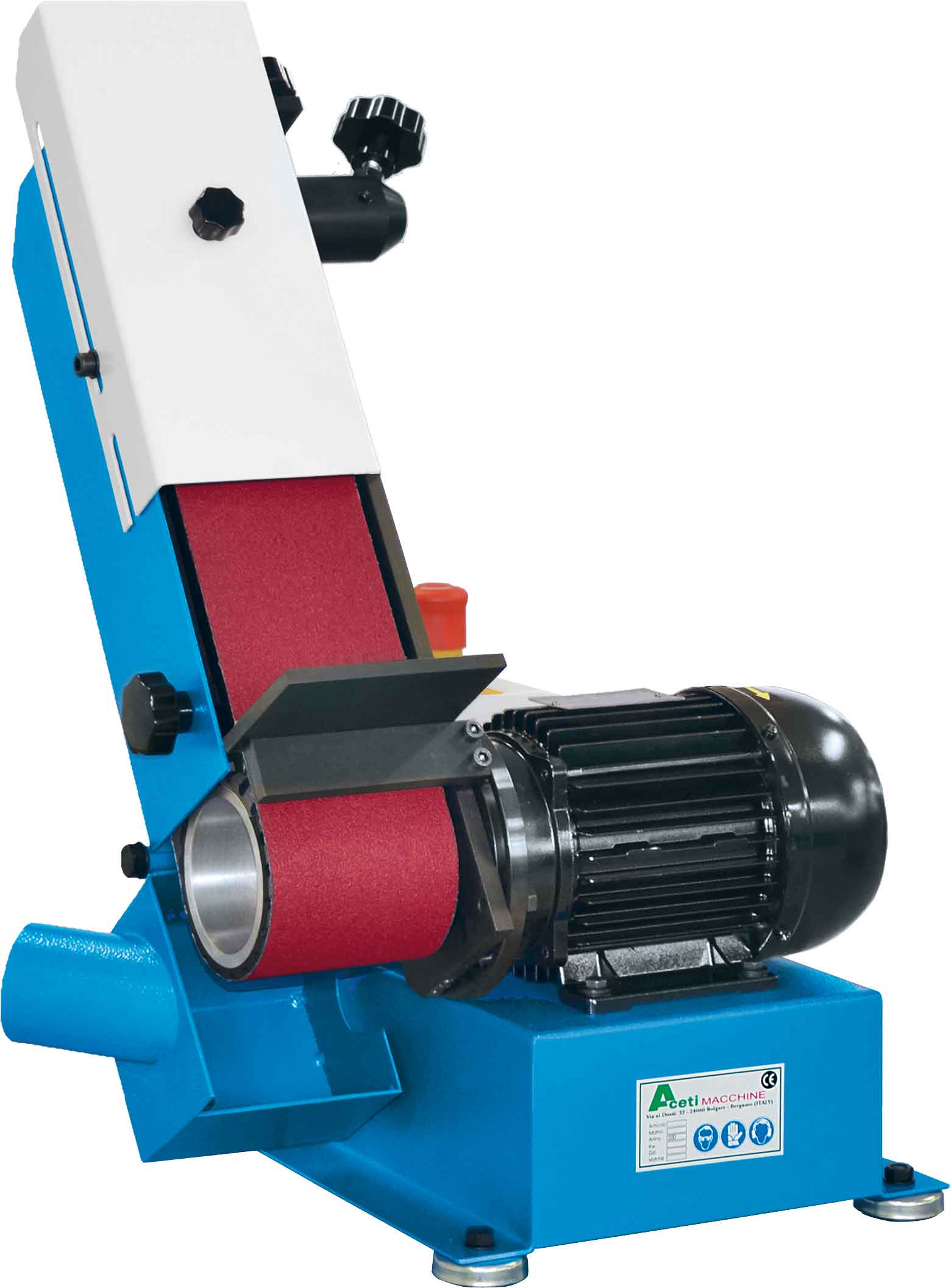

Belt grinding machine

ART.22 - Belt grinding machine

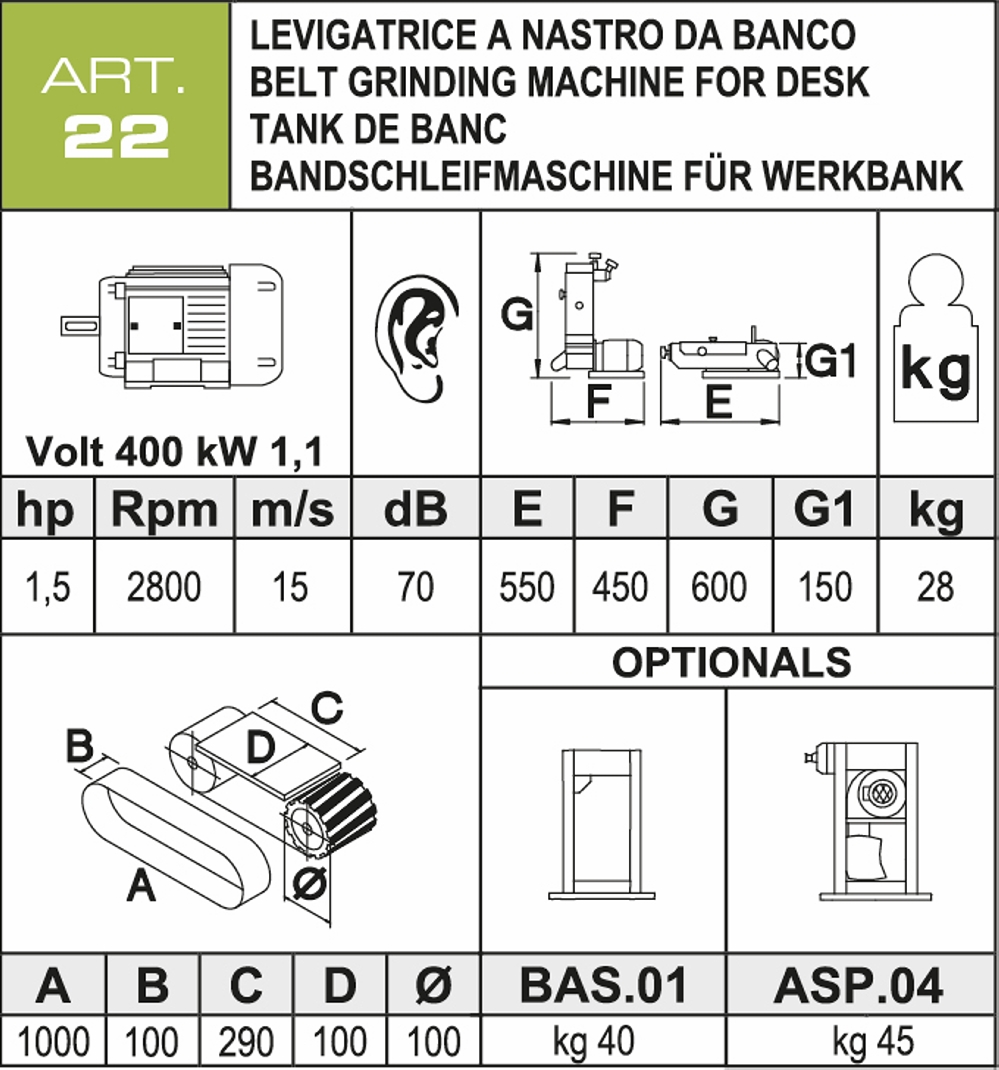

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
1,1 ( 1,5 )
kW ( hp )
Motor speed
2800
rpm
Acoustic emission
70
dB
Overall dimension (Width x Depth x Height)
450 x 550 x H. 600
mm
Weight standard machine
28
kg

Belt grinder unit

Abrasive belt dimension (wide x length)
100 x 1000
mm
Peripheral speed
15
m/sec
Dimension of working plane (behind abrasive belt)
100 x 290
mm
Driving wheel dimension
ø 100
mm
Orientable belt grinding arm
0 ÷ 90
°

Standard Equipments

Machine respect CE stamp of compliance
Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.
Base
Stable bench structure with anti-vibration rubbers at the base.
Electrical panel
Electric controls with emergency stop and anti-reset function for accidental starting and electronic overload protection.
Orientable arm sander
Arm sander adjustable from 0 ° to 90 ° and intermediate positions.
Type of work
Three types of processing, in plan with support, on tyred wheel, on tyred wheel with support.
Work surface
Behind the abrasive tape has a durable floor in abutment replaceable steel over time.
Rubberized grooved wheel
Rubberized, grooved and balanced drive wheel for better drag of the abrasive belt.
Abrasive belt
Abrasive belt mounted on the machine ready for use.
Belt grinder cover
Carter sander with predisposition connection system.

Optional Equipments

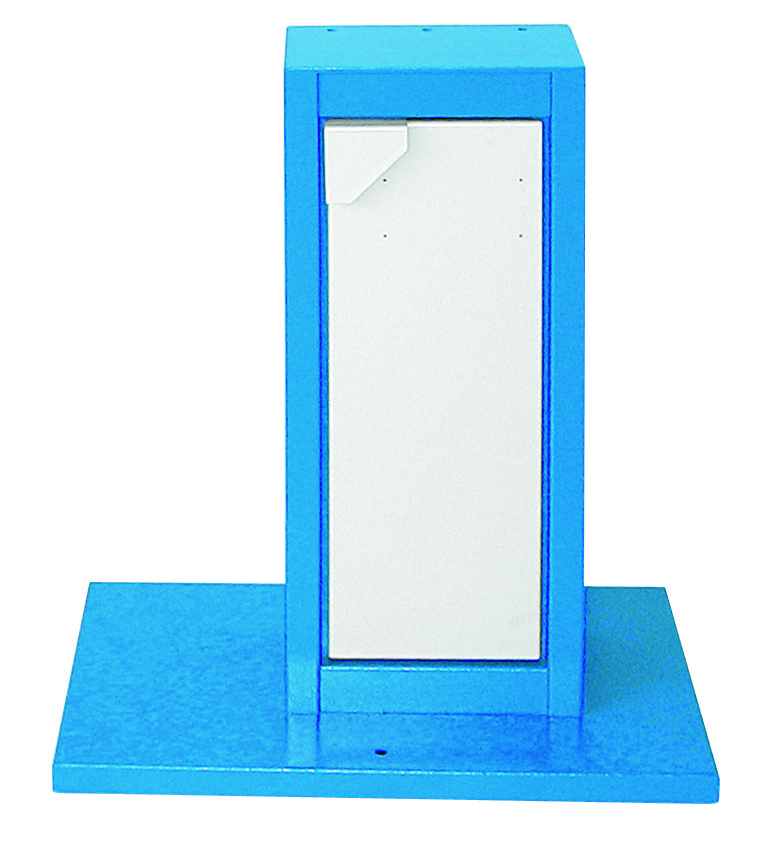

BAS.02: MACHINE STAND
cod. BAS.02:  MACHINE STAND
Strong stand with anti-vibration rubber and inside a useful space for tools. Dimensions 300X200 X H.750 - KG 25
BAS.02+IA-1: MACHINE STAND WITH DUST EXTRACTION ONE CONNECTION
cod. BAS.02+IA-1:  MACHINE STAND WITH DUST EXTRACTION ONE CONNECTION
STAND WITH DUST EXTRACTOR kit with one suction mouth: complete of dust filter bag in flexible aluminum pipe and hose clamps. The extractor is wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O

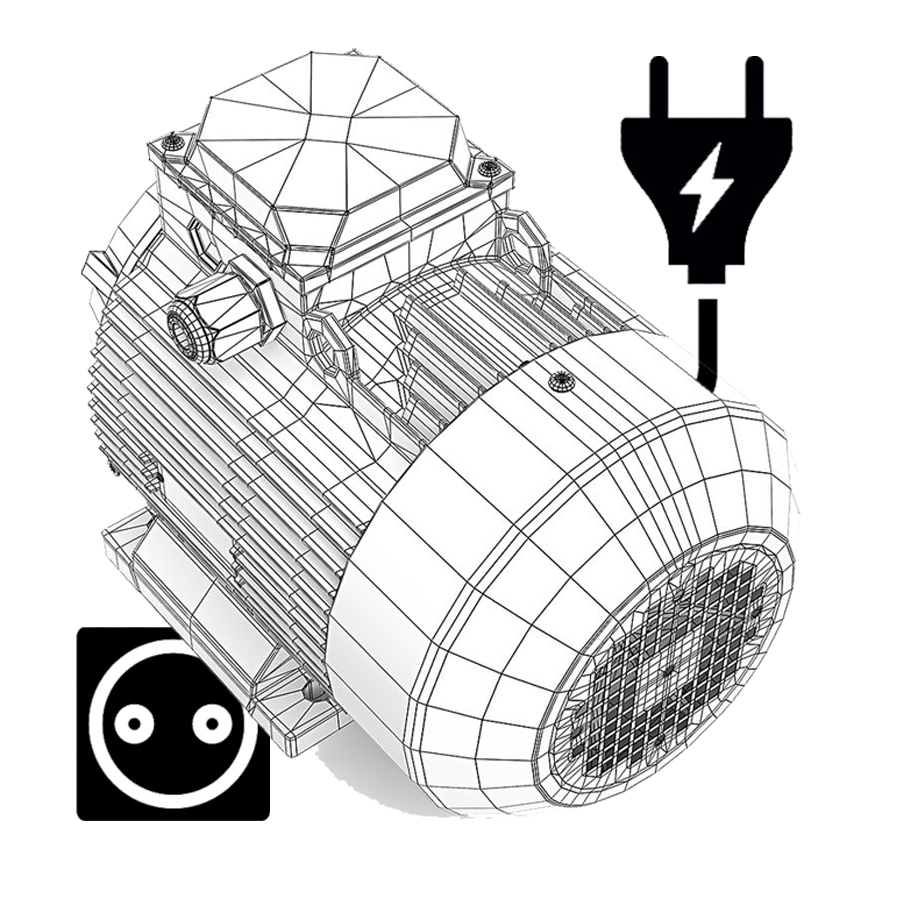

M1V-MF: SINGLE PHASE MOTOR ONE SPEED
cod. M1V-MF:  SINGLE PHASE MOTOR ONE SPEED
Single phase motor one speed Rpm 2800 230 volts - 50 Hz - 1 phase

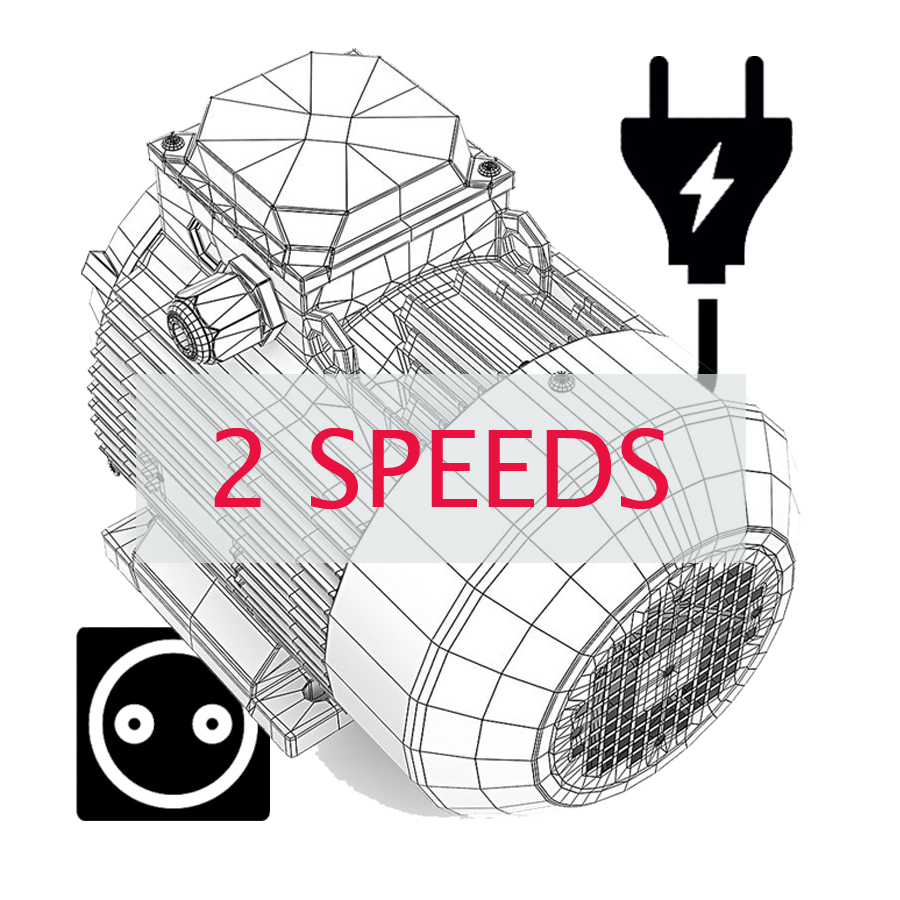

M2V-MF: TWO SPEEDS SINGLE PHASE MOTOR
cod. M2V-MF:  TWO SPEEDS SINGLE PHASE MOTOR
Two speeds single phase motorRpm 1400/2800 230 volts - 50 Hz - 1 phase

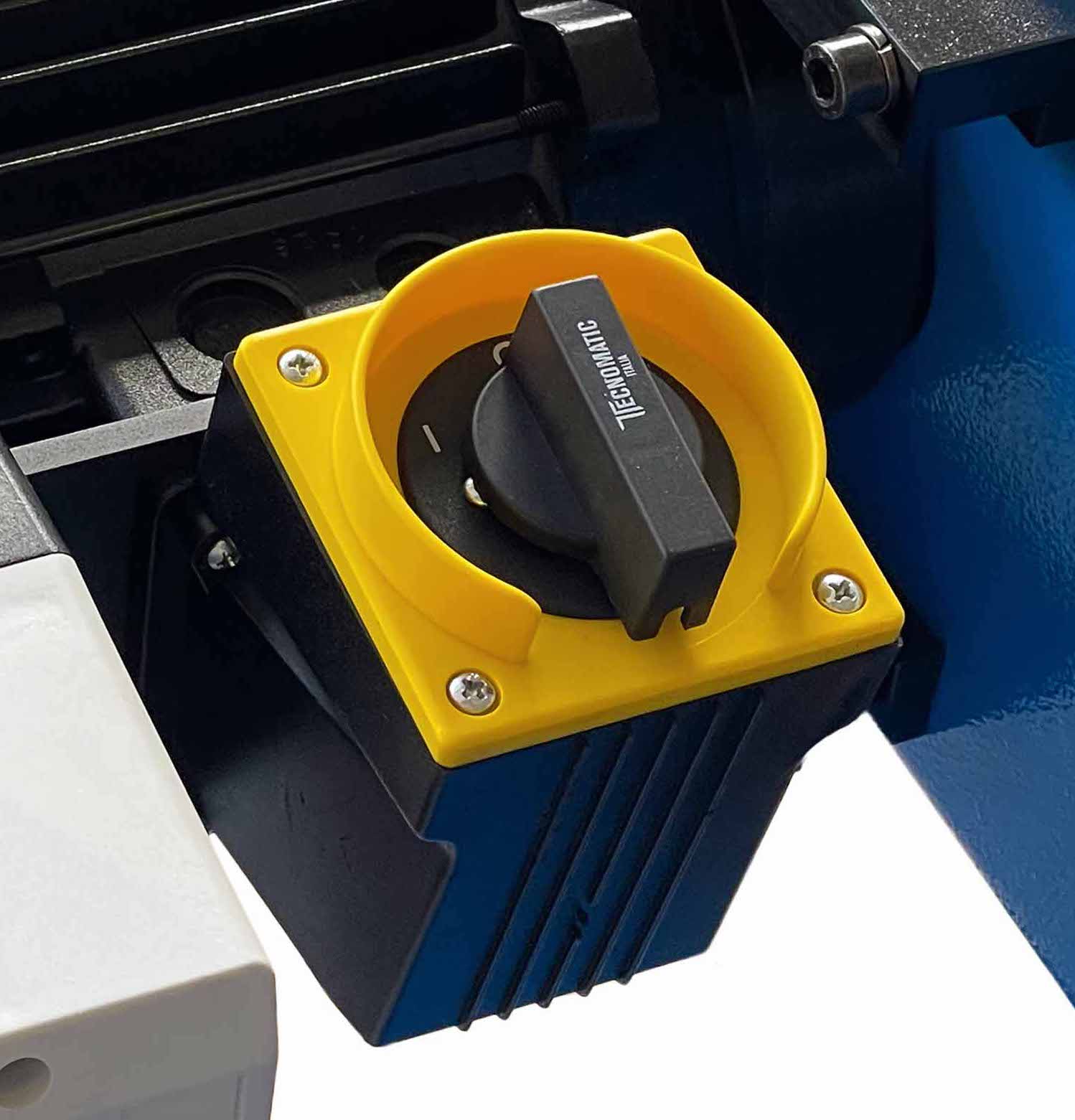

M2V-TA: TWO SPEEDS MOTOR
cod. M2V-TA:  TWO SPEEDS MOTOR
Two speeds three-phase motor Rpm 1400/2800, recommended for use with stainless steel and aluminum.400 volts - 50 Hz - 3 phase
INV-MF: VARIABLE SPEEDS SINGLE PHASE
cod. INV-MF:  VARIABLE SPEEDS SINGLE PHASE
Single-phase inverter for electronic regulation of motor revolutions from 300 ÷ 3000 Rpm.The inverter is supplied inside box for the dust protection, which can be controlled with potentiometer and selector of direction of the motor.Motor with maximum power 1,1 kW.
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
