ART.104

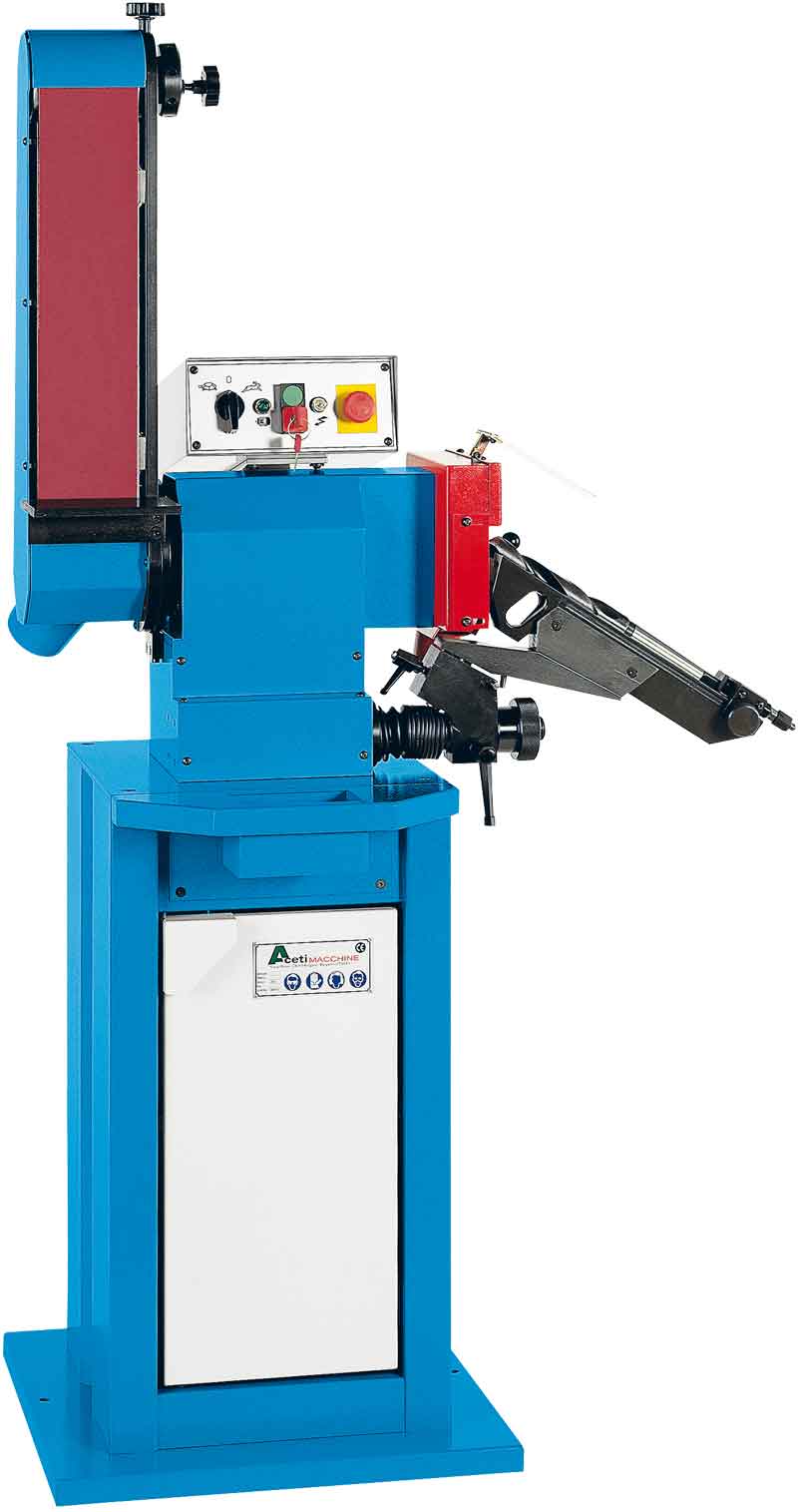

Drill sharpening machine

ART.104 - Drill sharpening machine

Video

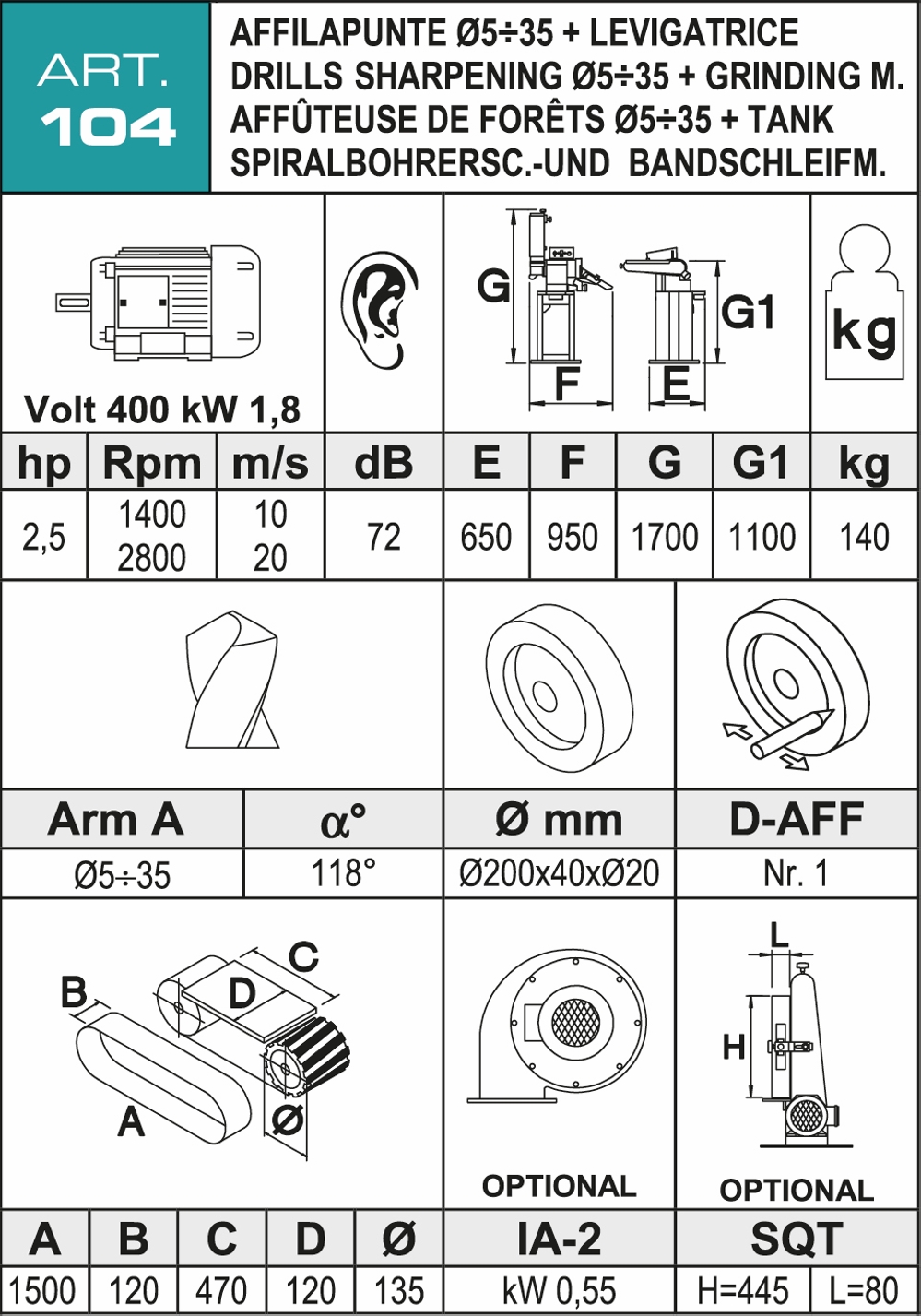

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
1,9 - 1,1 ( 2,5 - 1,5 )
kW ( hp )
Motor speed
2800 - 1400
rpm
Acoustic emission
72
dB
Overall dimension (Width x Depth x Height)
950 x 650 x H. 1700
mm
Weight standard machine
140
kg

Belt grinder unit

Abrasive belt dimension (wide x length)
120 x 1500
mm
Peripheral speed
20 - 10
m/sec
Dimension of working plane (behind abrasive belt)
120 x 470
mm
Driving wheel dimension
ø 135
mm
Orientable belt grinding arm
0 ÷ 90
°

Drill sharpener arm "A"

Drill diameter
5 ÷ 35
mm
Sharpening angle
118
°
Cup grinding wheel dimension
ø 200 x 40 x ø 20
mm
Peripheral speed
30 - 15
m/sec

Standard Equipments

Base
Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.
Electrical panel
Low voltage electric controls with padlock device integrated in the main electric switch.
Electronic brake card
Emergency stop with electronic motor braking with safety anti-reset function.
Motor
Motor 2 speeds
Orientable arm sander
Arm sander adjustable from 0 ° to 90 ° and intermediate positions.
Type of work
Three types of processing, in plan with support, on tyred wheel, on tyred wheel with support.
Work surface
Behind the abrasive tape has a durable floor in abutment replaceable steel over time.
Rubberized grooved wheel
Rubberized, grooved and balanced drive wheel for better drag of the abrasive belt.
Abrasive belt
Abrasive belt mounted on the machine ready for use.
Belt grinder cover
Carter sander with predisposition connection system.
Trailing arm
Trailing arm for sharpening twist drills with diameters between Ø5 to Ø35mm.Trailing arm adjustable in axial position, to maintain the minimum distance with the cup grinding wheel.Trailing arm adjustable along the side of the grinding wheel, in order to exploit the whole cutting surface.
Sled for adjustment
Arm with sled for adjustment of the length of the tip.
Working
Sharpening micrometric through the controlled approach to the grinding wheel.
Cup grinding wheel
cup grinding wheel mounted on the machine ready for use.
Locking accessories
Locking and reducing steel flange for brush, flap wheel with spacers and clamping nuts.
Grinder cover
Cover with predisposition connection system with predisposition connection system.
Anti-spark repair
Transparent protection arrester with friction joint.
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
