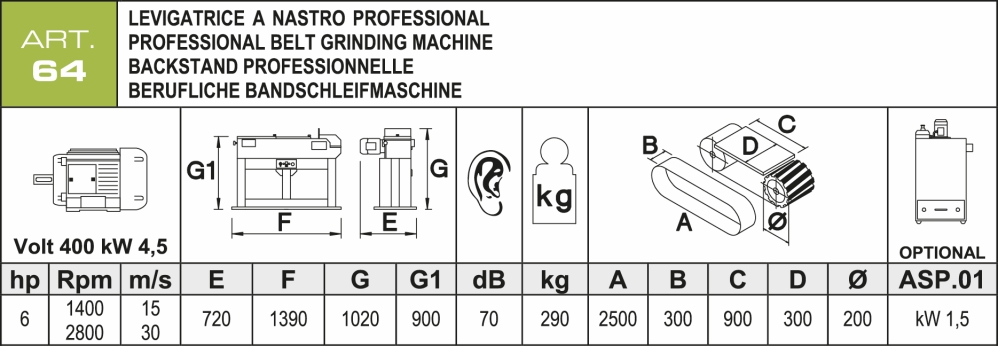

Power supply |
400 | 50 | 3 |
Volt|Hz|Phase |
Motor power |
4,5 - 3,7 ( 6,0 - 5,0 ) |
kW ( hp ) |
Motor speed |
2800 - 1400 |
rpm |
Acoustic emission |
70 |
dB |
Overall dimension (Width x Depth x Height) |
1390 x 720 x H. 1020 |
mm |
Weight standard machine |
290 |
kg |
Abrasive belt dimension (wide x length) |
300 x 2500 |
mm |
Peripheral speed |
30 - 15 |
m/sec |
Dimension of working plane (behind abrasive belt) |
300 x 900 |
mm |
Driving wheel dimension |
ø 200 |
mm |
Orientable belt grinding arm |
0 |
° |
