ART.62

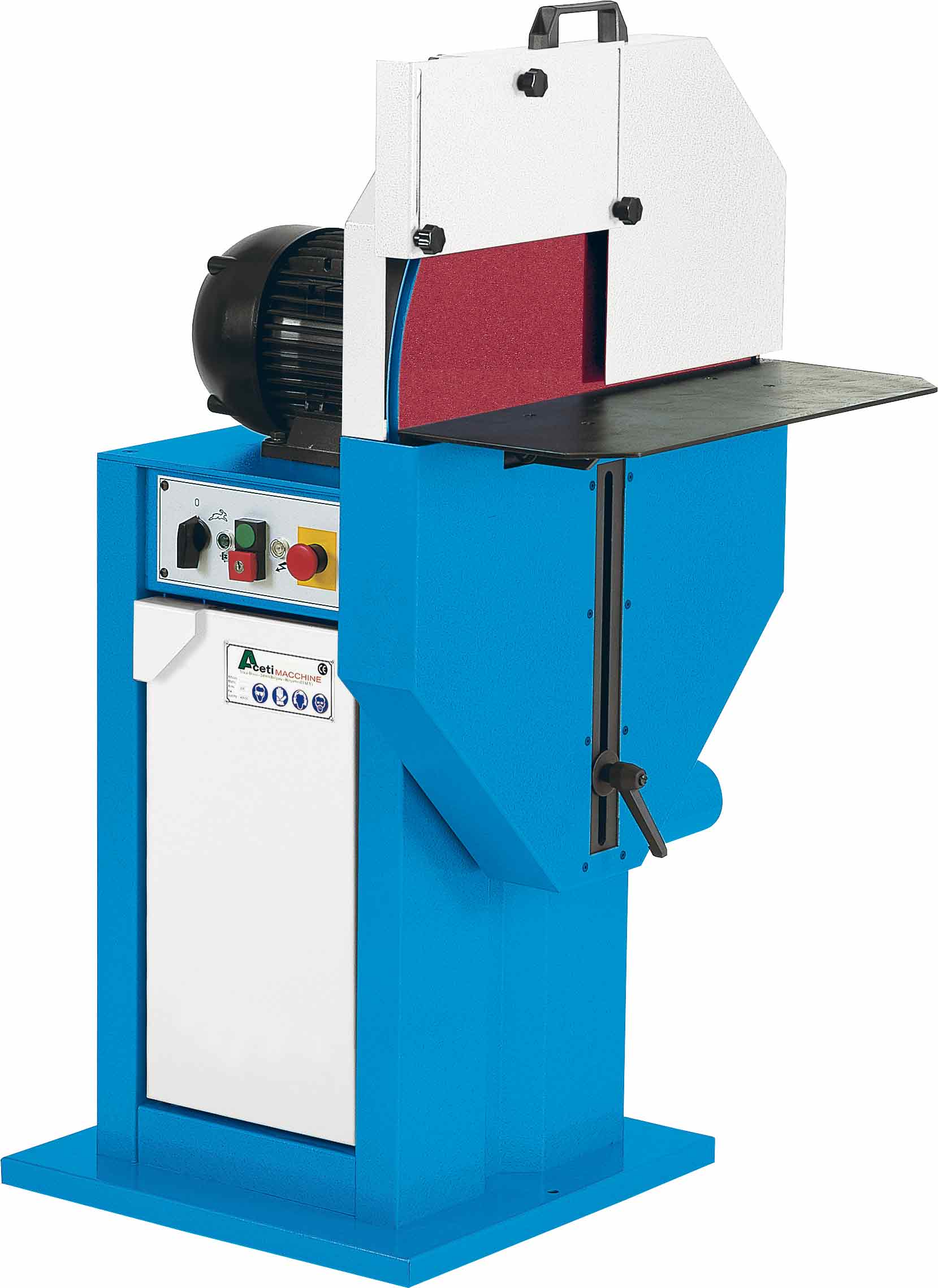

Disc grinding machine

ART.62 - Disc grinding machine

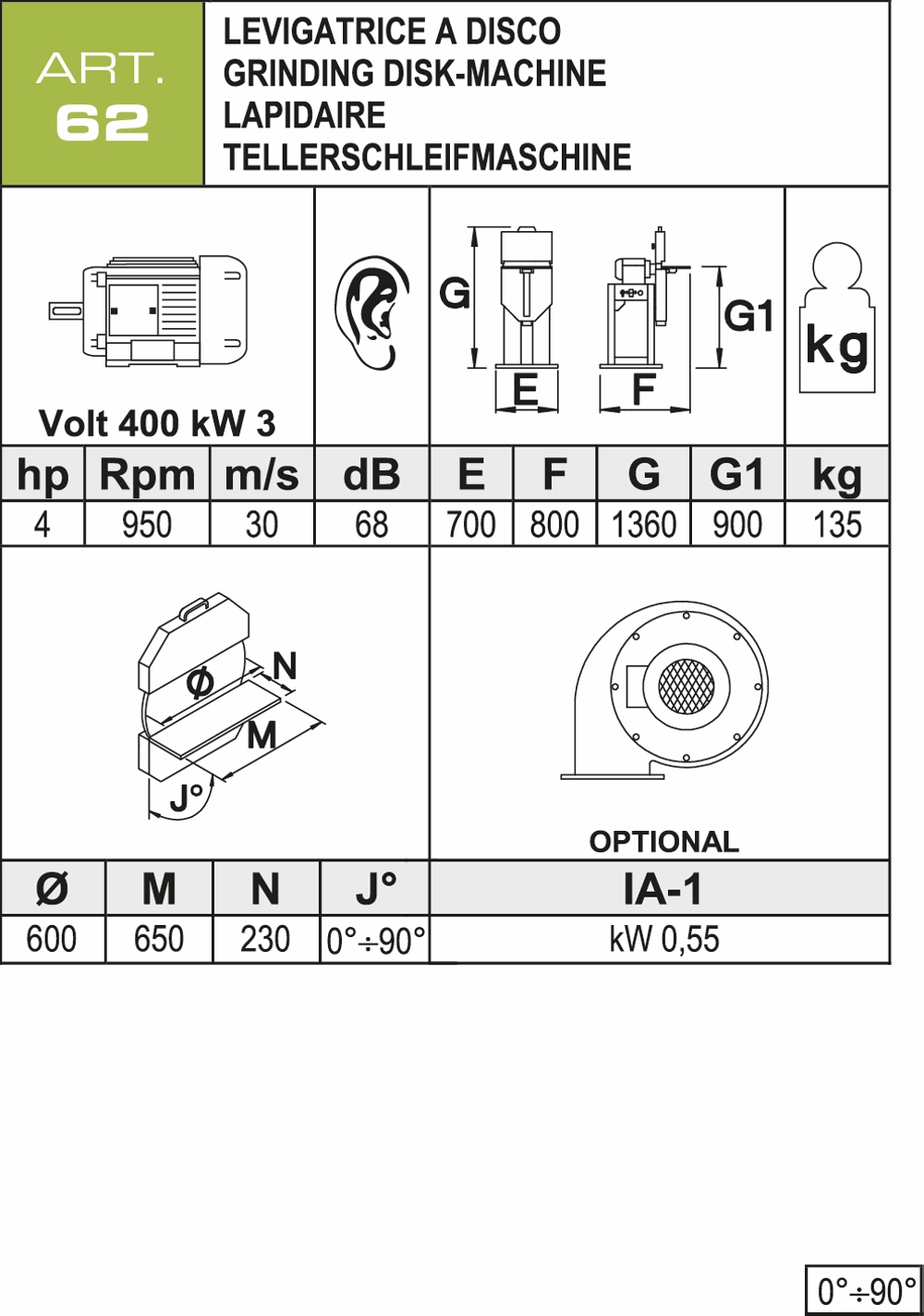

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
3,0 ( 4,0 )
kW ( hp )
Motor speed
950
rpm
Acoustic emission
68
dB
Overall dimension (Width x Depth x Height)
800 x 700 x H. 1360
mm
Weight standard machine
135
kg

Abrasive disc grinder unit

Abrasive disc dimension
ø 600
mm
Peripheral speed
30
m/sec
Support table dimension
650 x 230
mm
Support table revolution
0 ÷ 90
°

Standard Equipments

Machine respect CE stamp of compliance
Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.
Base
Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.
Electrical panel
Low voltage electric controls with padlock device integrated in the main electric switch.
Electronic brake card
Emergency stop with electronic motor braking with safety anti-reset function.
Support plane
Support plane details inclinable with adjustable height.
Disc
Aluminium disc perfectly balanced.
Abrasive disc
Abrasive disc mounted on the machine ready for use.
Belt grinder cover
Carter sander with predisposition connection system.
Anti-spark repair
Transparent protection arrester with friction joint.

Optional Equipments

IA-1: DUST EXTRACTOR - ONE CONNECTION
cod. IA-1:  DUST EXTRACTOR - ONE CONNECTION
DUST EXTRACTOR kit with one suction mouth: complete of dust filter bag in flexible aluminum pipe and hose clamps. The extractor is mounted inside the base and wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
