Tooted » Lintlihvijad - Ketaslihvijad » Ketaslihvijad » ART.52

ART.52

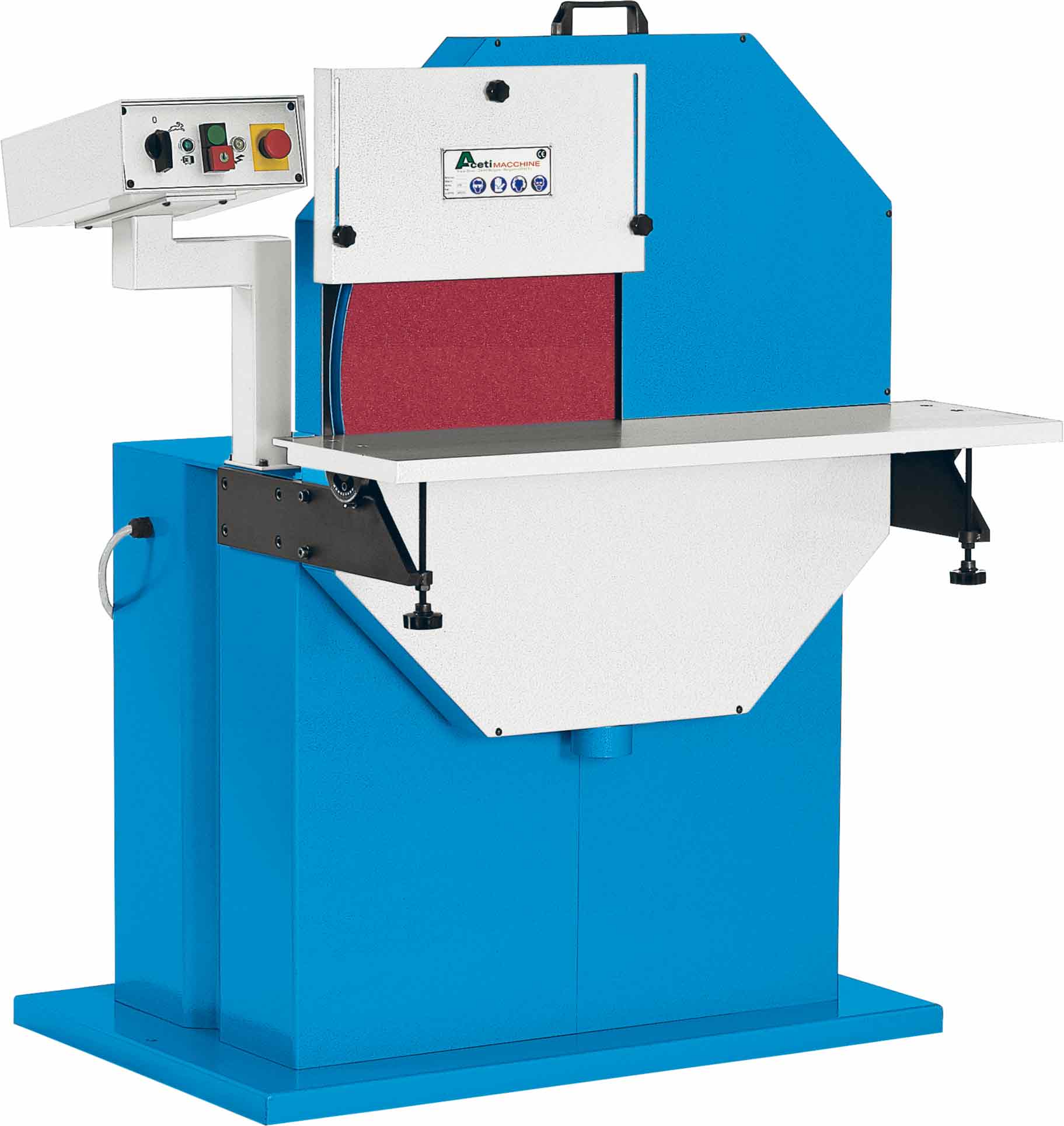

Disc grinding machine

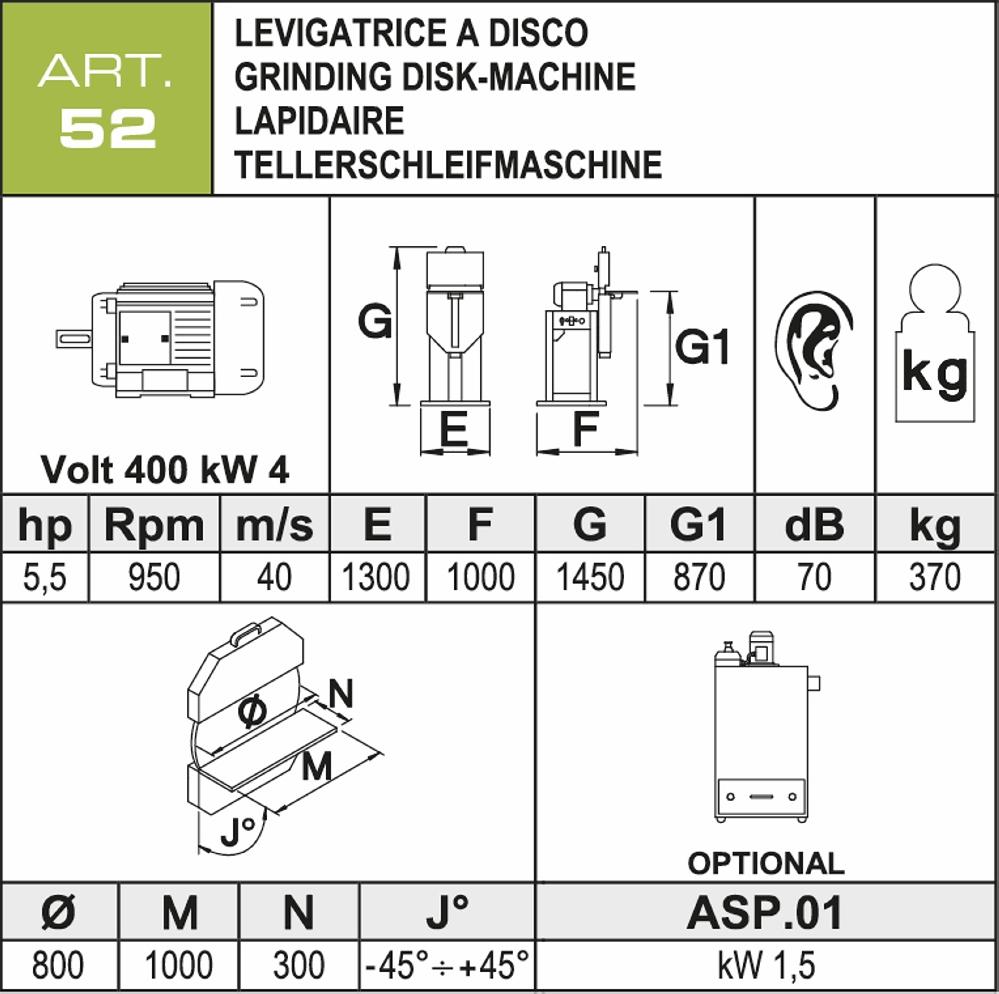

General technical info

Power supply	400 \| 50 \| 3	Volt\|Hz\|Phase
Motor power	4,0 ( 5,5 )	kW ( hp )
Motor speed	950	rpm
Acoustic emission	70	dB
Overall dimension (Width x Depth x Height)	1000 x 1300 x H. 1450	mm
Weight standard machine	370	kg

Abrasive disc grinder unit

Abrasive disc dimension	ø 800	mm
Peripheral speed	40	m/sec
Support table dimension	1000 x 300	mm
Support table revolution	0 ÷ + 45	°

Standard Equipments

Machine respect CE stamp of compliance

- Machine with CE conformity mark made respecting the requirements of the most recent
directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.

Guarantee of European standards

The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.

Base

Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.

Electrical panel

Low voltage electric controls with padlock device integrated in the main electric switch.

Electronic brake card

Emergency stop with electronic motor braking with safety anti-reset function.

Support plane

Support plane details inclinable with adjustable height.

Disc

Aluminium disc perfectly balanced.

Abrasive disc

Abrasive disc mounted on the machine ready for use.

Belt grinder cover

Carter sander with predisposition connection system.
