ART.88

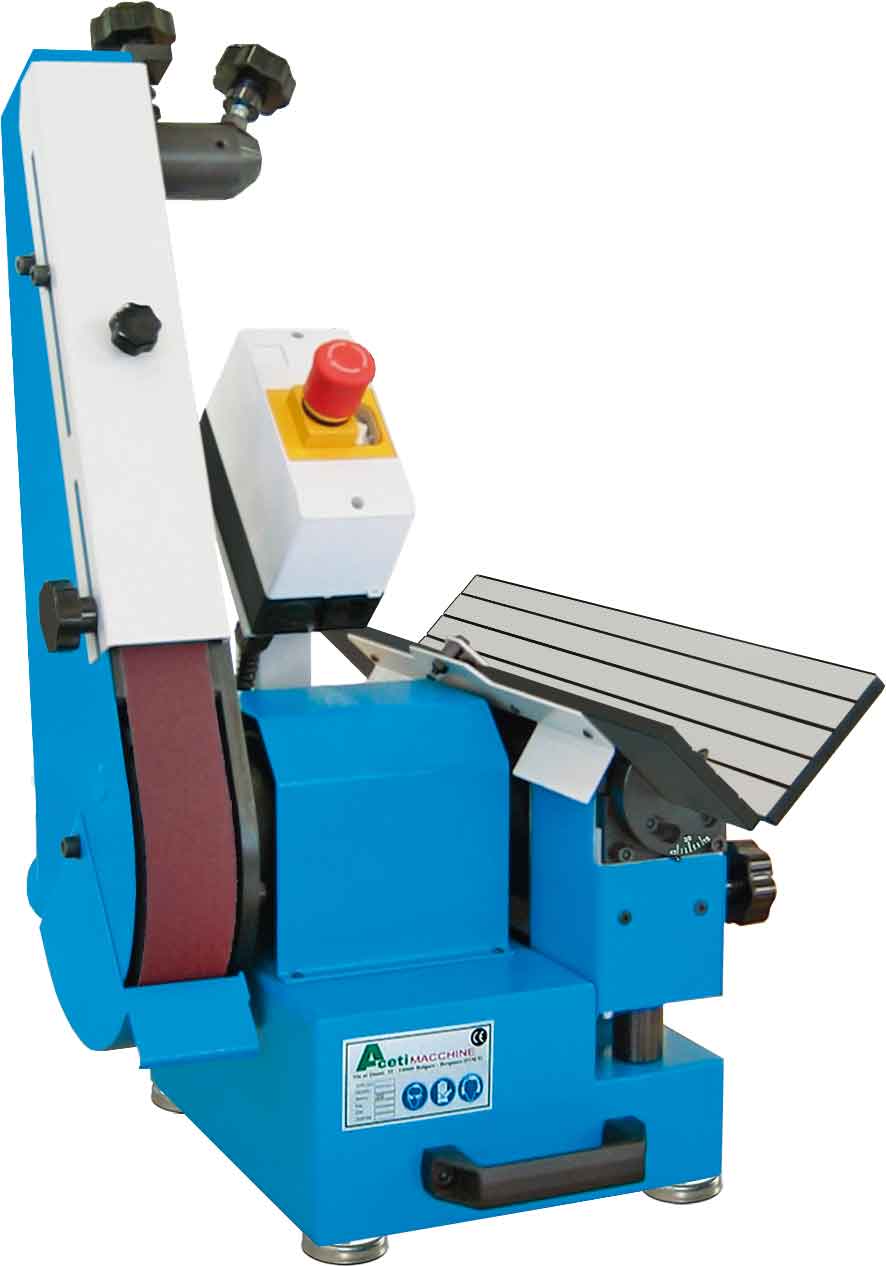

Bevelling machine

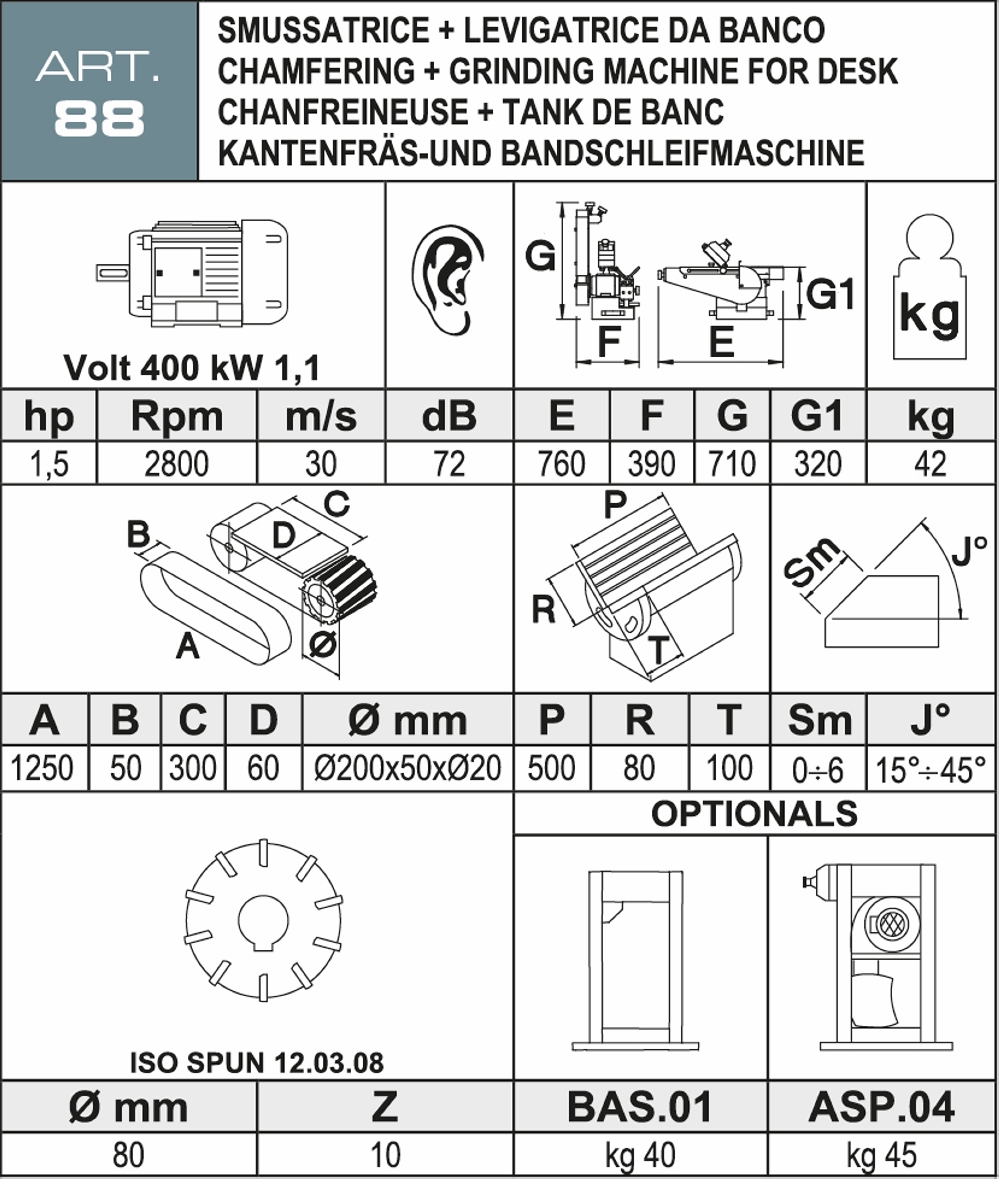

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
1,1 ( 1,5 )
kW ( hp )
Motor speed
2800
rpm
Acoustic emission
72
dB
Overall dimension (Width x Depth x Height)
390 x 760 x H. 710
mm
Weight standard machine
42
kg

Chamfer - bevel unit

Bevel dimension (diagonal)
0 ÷ 6
mm
Bevel angle
15 ÷ 45
°
Milling cutter diameter
ø 80
mm
Quantity of widia insert milling cutter
10
No.
Widia insert type/code
SPUN 12 03 08
ISO
Support table dimension
100 x 500
mm
Peripheral speed
12
m/sec

Belt grinder unit - wheel processing

Abrasive belt dimension (wide x length)
50 x 1250
mm
Peripheral speed
30
m/sec
Dimension of working plane (behind abrasive belt)
60 x 300
mm
Dimensions of grooved rubberized driving wheel (wide x diameter)
50 x ø 200
mm
Orientable belt grinding arm
0 ÷ 90
°

Standard Equipments

Service Keys
Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Instruction manual
Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list.
Machine respect CE stamp of compliance
Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it.
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.

Optional Equipments

cod. BAS.02+IA-1:  MACHINE STAND WITH DUST EXTRACTION ONE CONNECTION
STAND WITH DUST EXTRACTOR kit with one suction mouth: complete of dust filter bag in flexible aluminum pipe and hose clamps. The extractor is wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
