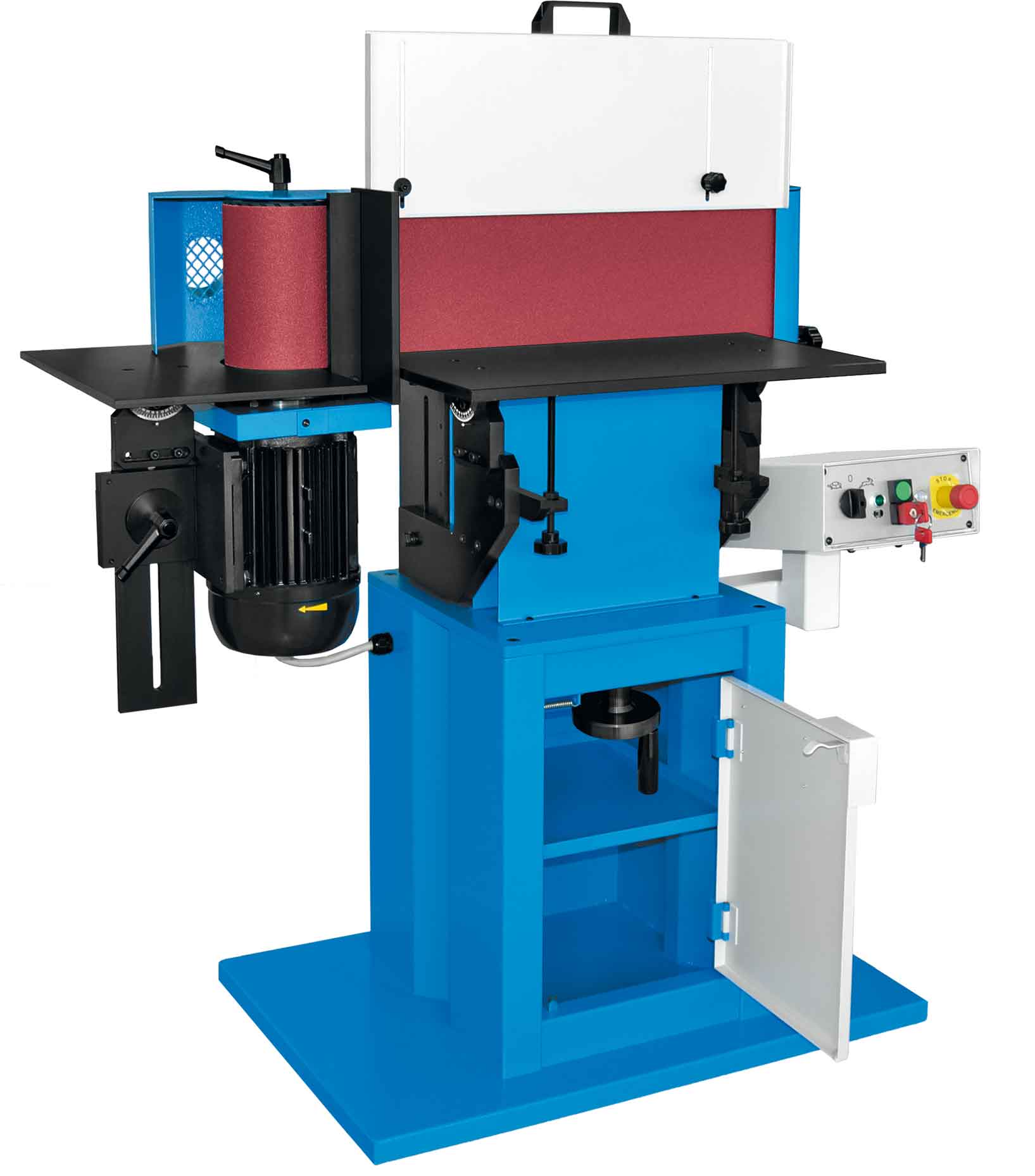

Belt grinding machine

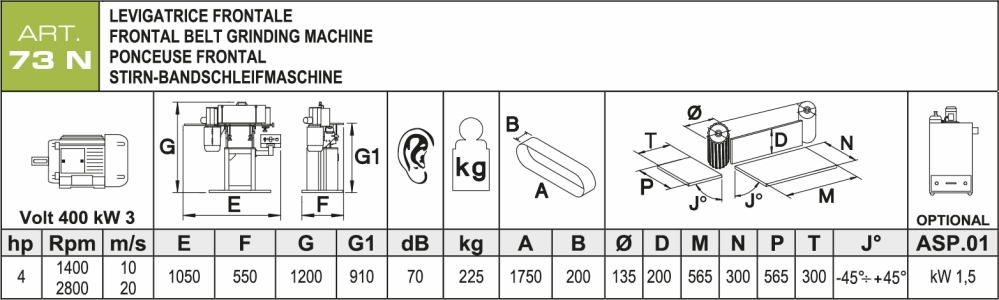

General technical info

Power supply
400 | 50 | 3
Motor power
3,3 - 2,6 ( 4,5 - 3,5 )
kW ( hp )
Motor speed
2800 - 1400
Acoustic emission
Overall dimension (Width x Depth x Height)
1050 x 550 x H. 1200
Weight standard machine

Belt grinder unit

Abrasive belt dimension (wide x length)
200 x 1750
Peripheral speed
20 - 10
Dimension of working plane (behind abrasive belt)
565 x 300
Driving wheel dimension
ø 135
Orientable belt grinding arm
Support table dimension
565 x 300
Support table revolution
- 45 ÷ + 45

Standard Equipments

Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.
Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.
Electrical panel
Low voltage electric controls with padlock device integrated in the main electric switch.
Electronic brake card
Emergency stop with electronic motor braking with safety anti-reset function.
Motor 2 speeds
Type of work
Two types of work:- Plan for special support of the surface plate processing:tiltable with graduated indicator -45 ° to + 45 ° and intermediate positions height adjustable by means of handwheel for the full utilization of the cutting surface of the abrasive tape.- special support plan for working on rubber wheel:tiltable with graduated indicator -45 ° to + 45 ° and intermediate positions adjustable height for the full utilization of the cutting surface of the abrasive tape.
Work surface
Behind the abrasive tape has a durable floor in abutment replaceable steel over time.
Rubberized grooved wheel
Rubberized, grooved and balanced drive wheel for better drag of the abrasive belt.
Abrasive belt
Abrasive belt mounted on the machine ready for use.
Belt grinder cover
Carter sander with predisposition connection system.
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
