ART.68

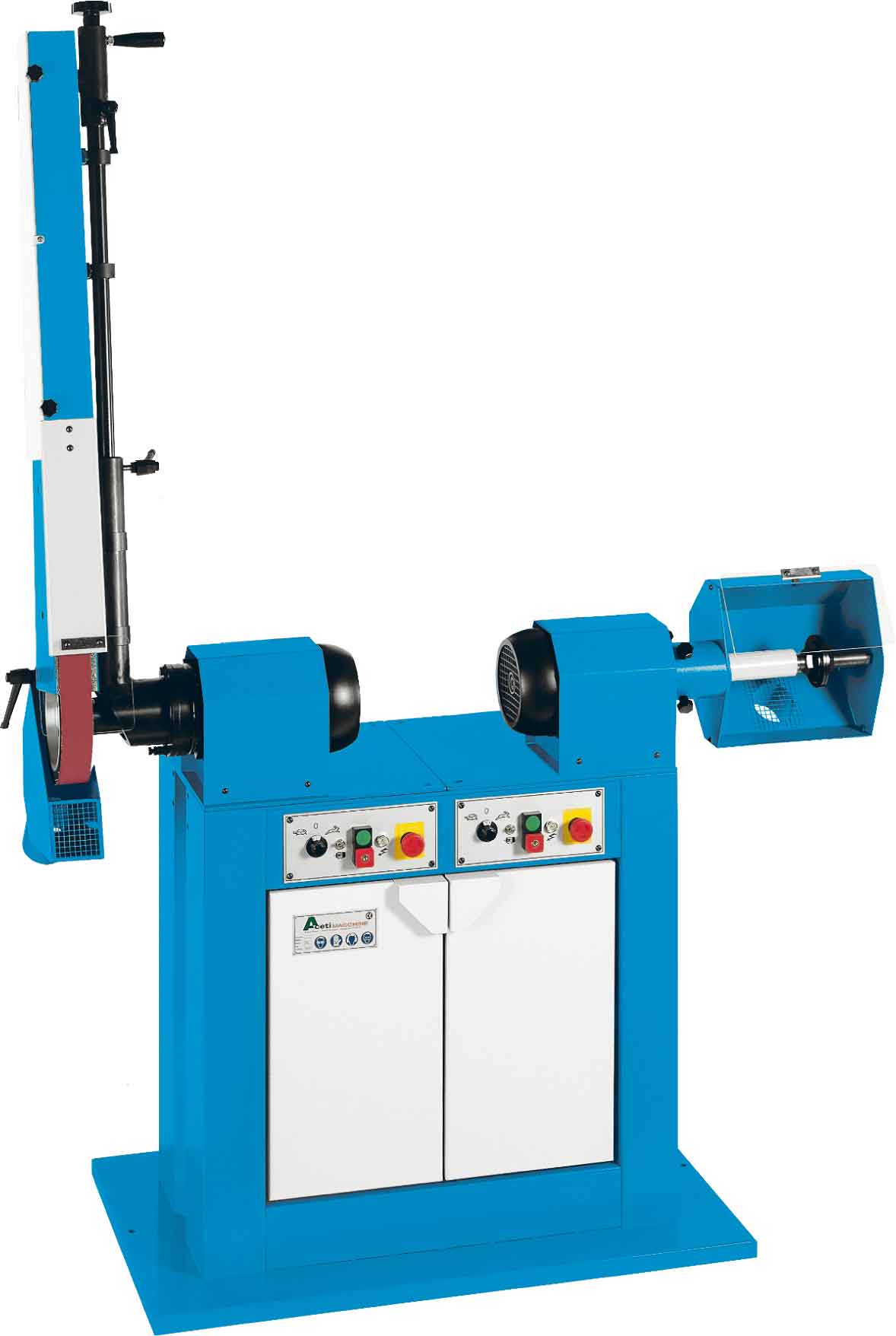

Belt grinding machine

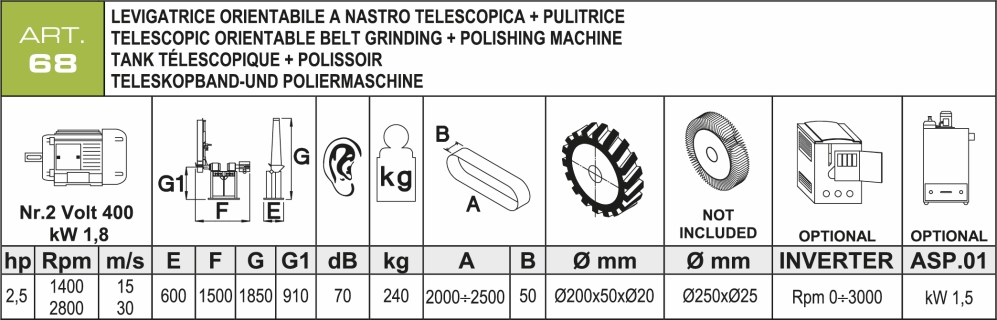

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
2,2 - 1,3 ( 3 - 1,8 )
kW ( hp )
Motor speed
2800 - 1400
rpm
Acoustic emission
70
dB
Overall dimension (Width x Depth x Height)
1500 x 600 x H. 1850
mm
Weight standard machine
240
kg

Belt grinder unit - wheel processing

Abrasive belt dimension (wide x length)
50 x 2000 ÷ 2500
mm
Peripheral speed
30 - 15
m/sec
Dimensions of grooved rubberized driving wheel (wide x diameter)
50 x ø 200
mm
Orientable belt grinding arm
0 ÷ 90
°

Polisher - Buffer unit

Brush maximum external size
ø 250
mm
Motor shaft diameter
ø 25
mm
Brush maximum wide size
70
mm
Peripheral speed
36 - 18
m/sec

Standard Equipments

Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.
Base
Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.
Electrical panel
Low voltage electric controls with padlock device integrated in the main electric switch.
Electronic brake card
Emergency stop with electronic motor braking with safety anti-reset function.
Motor
Motor 2 speeds
Orientable telescopic arm sander
Orientable telescopic arm sander adjustable from 0 ° to 90 ° and intermediate positions.
Telescopic arm
Arm telescopic machine that allows to mount tapes from development 2000 mm up to 2500 mm.
Rubberized grooved wheel
Rubberized grooved wheel d.250x50 mounts on machine
Abrasive belt
Abrasive belt mounted on the machine ready for use.
Graphite
Present behind the sanding belt the canvas graphite to reduce friction and heat development.
Polishing cover
Carter adjustable for a comfortable and precise positioning of the operator and with predisposition connection system.
Locking accessories
Locking and reducing steel flange for brush, flap wheel with spacers and clamping nuts.
Belt grinder cover
Carter sander with predisposition connection system.
Anti-spark repair
Transparent protection arrester with friction joint.
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
