ART.67

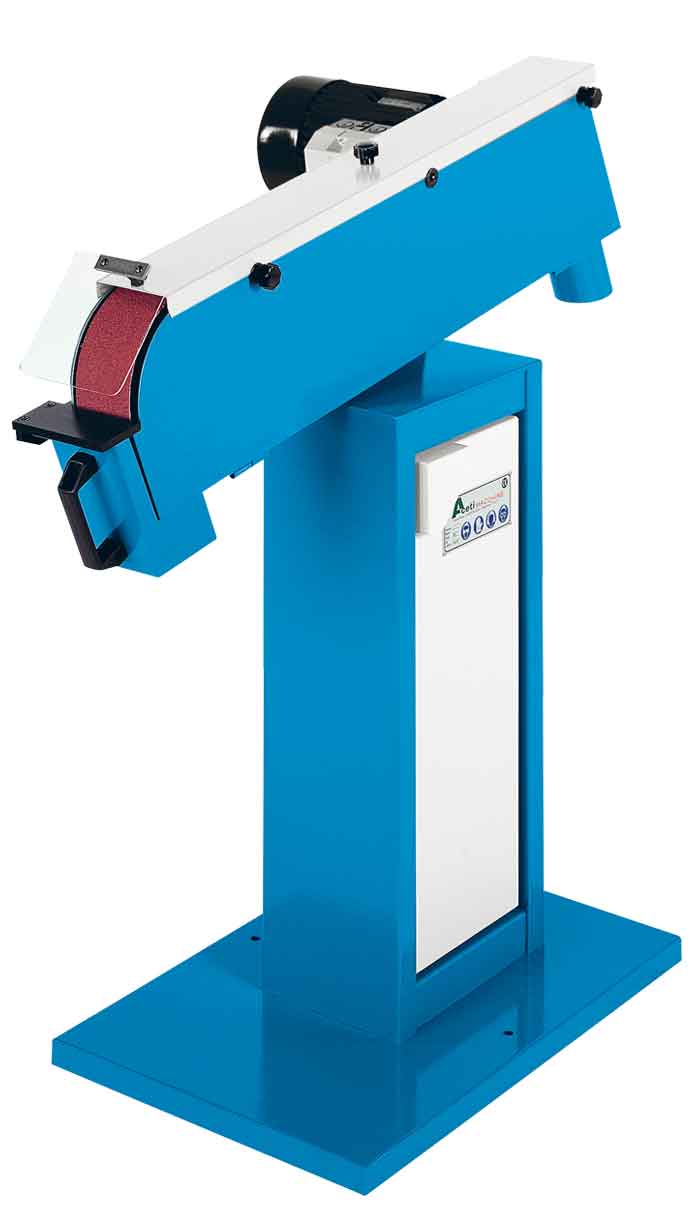

Belt grinding machine

ART.67 - Belt grinding machine

Video

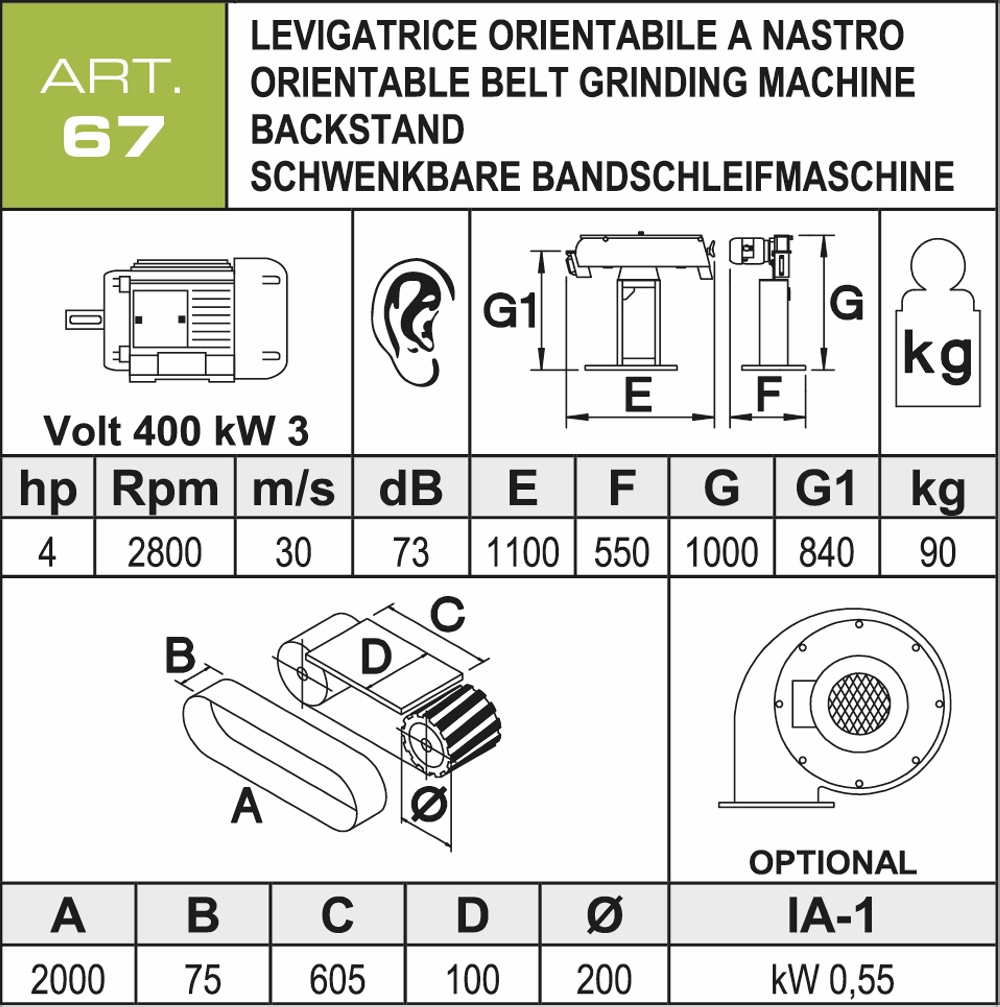

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
3 ( 4 )
kW ( hp )
Motor speed
2800
rpm
Acoustic emission
73
dB
Overall dimension (Width x Depth x Height)
1100 x 550 x H. 1000
mm
Weight standard machine
90
kg

Belt grinder unit - wheel processing

Abrasive belt dimension (wide x length)
75 x 2000
mm
Peripheral speed
30
m/sec
Dimension of working plane (behind abrasive belt)
100 x 605
mm
Driving wheel dimension
ø 200
mm
Orientable belt grinding arm
- 30 ÷ + 30
°

Standard Equipments

Machine respect CE stamp of compliance
Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.
Base
Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside.
Electrical panel
Low voltage electric controls with padlock device integrated in the main electric switch.
Belt grinder head
The belt grinder head is adjustable from -30 ° to + 30 ° and intermediate positions.
Support plane
Fix support surface for working in support near the front contact wheel.
Front contact wheel
Front contact wheel rubberized grooved and balanced
Graphite
Present behind the sanding belt the canvas graphite to reduce friction and heat development.
Abrasive belt
Abrasive belt mounted on the machine ready for use.
Dust collection
Dust collection drawer placed under the contact wheel.
Belt grinder cover
Carter sander with predisposition connection system.
Anti-spark repair
Transparent protection arrester with friction joint.

Optional Equipments

IA-1: DUST EXTRACTOR - ONE CONNECTION
cod. IA-1:  DUST EXTRACTOR - ONE CONNECTION
DUST EXTRACTOR kit with one suction mouth: complete of dust filter bag in flexible aluminum pipe and hose clamps. The extractor is mounted outside the base and wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
M2V-TB: DOUBLE SPEEDS MOTOR
cod. M2V-TB:  DOUBLE SPEEDS MOTOR
Two speeds three-phase motor recommended for use with stainless steel and aluminum.Rpm 1400/2800 400 volts - 50 Hz - 3 phase
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
