ART.33

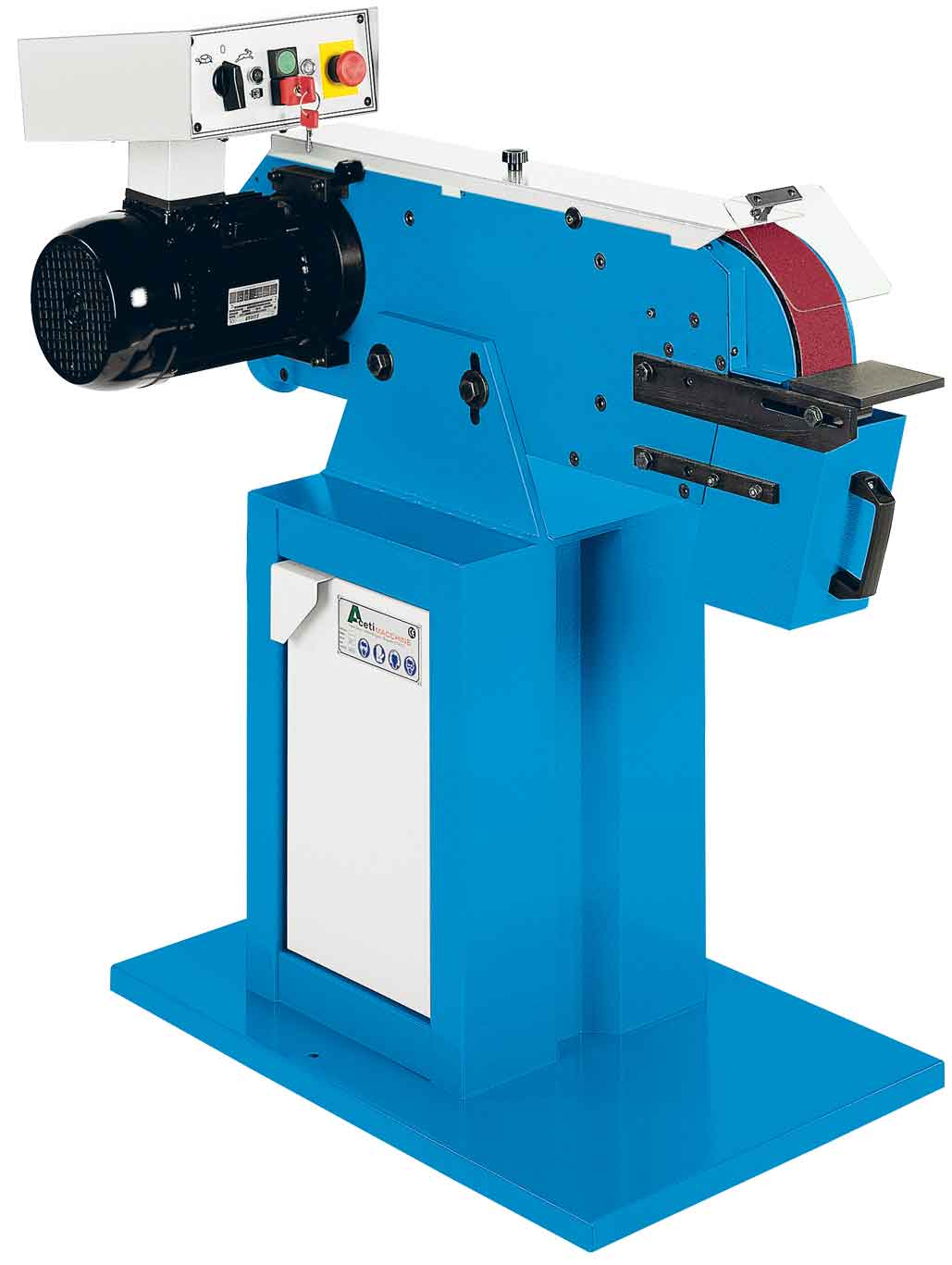

Belt grinding machine

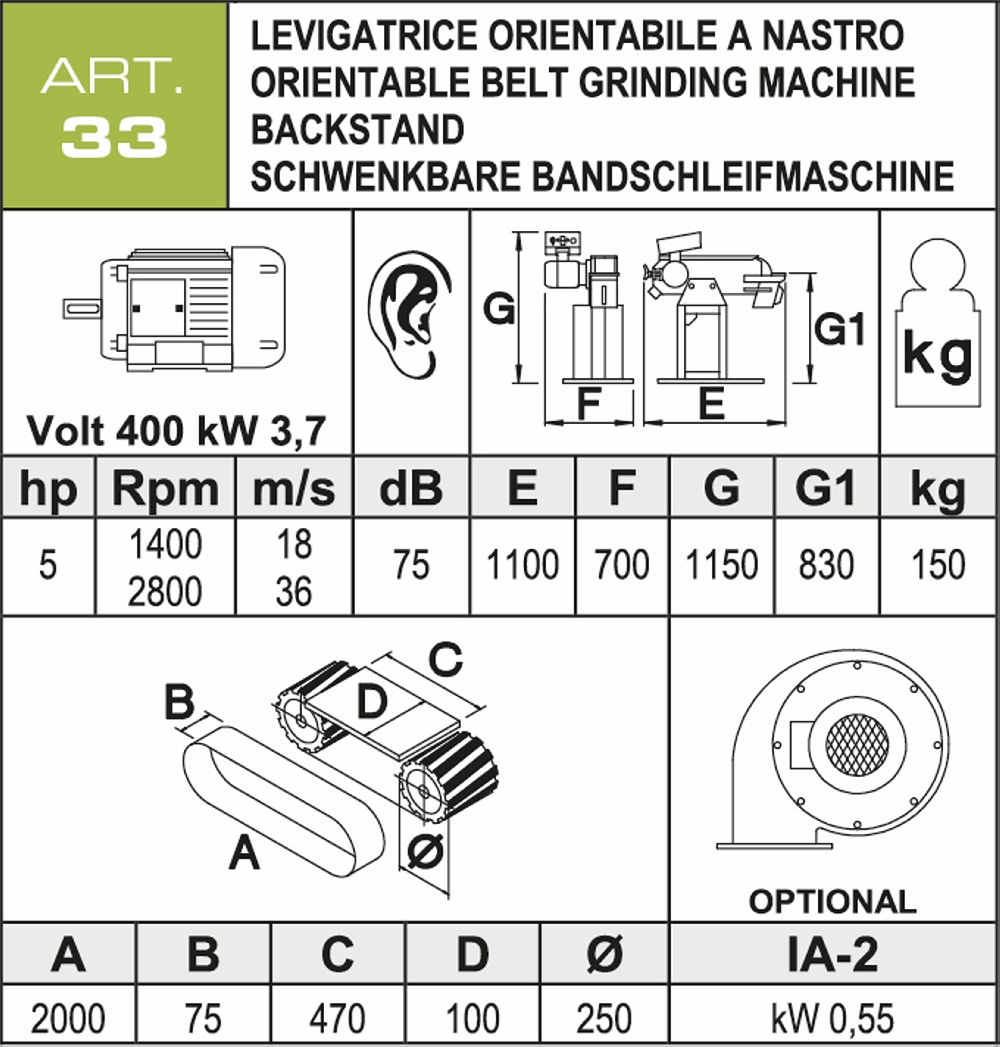

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
3,7 - 2,2 ( 5 - 3 )
kW ( hp )
Motor speed
2800 - 1400
rpm
Acoustic emission
75
dB
Overall dimension (Width x Depth x Height)
1100 x 700 x H. 1150
mm
Weight standard machine
150
kg

Belt grinder unit - wheel processing

Abrasive belt dimension (wide x length)
75 x 2000
mm
Peripheral speed
36 - 18
m/sec
Dimension of working plane (behind abrasive belt)
100 x 470
mm
Driving wheel dimension
ø 250
mm
Orientable belt grinding arm
- 30 ÷ + 30
°

Standard Equipments

Service Keys
Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Instruction manual
Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list.
Machine respect CE stamp of compliance
Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it.
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.

Optional Equipments

cod. IA-2:  DUST EXTRACTOR - TWO CONNECTIONS
DUST EXTRACTOR kit with two suction mouth: complete of dust filter bag in flexible aluminum pipes and hose clamps. The extractor is mounted inside the base and wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
