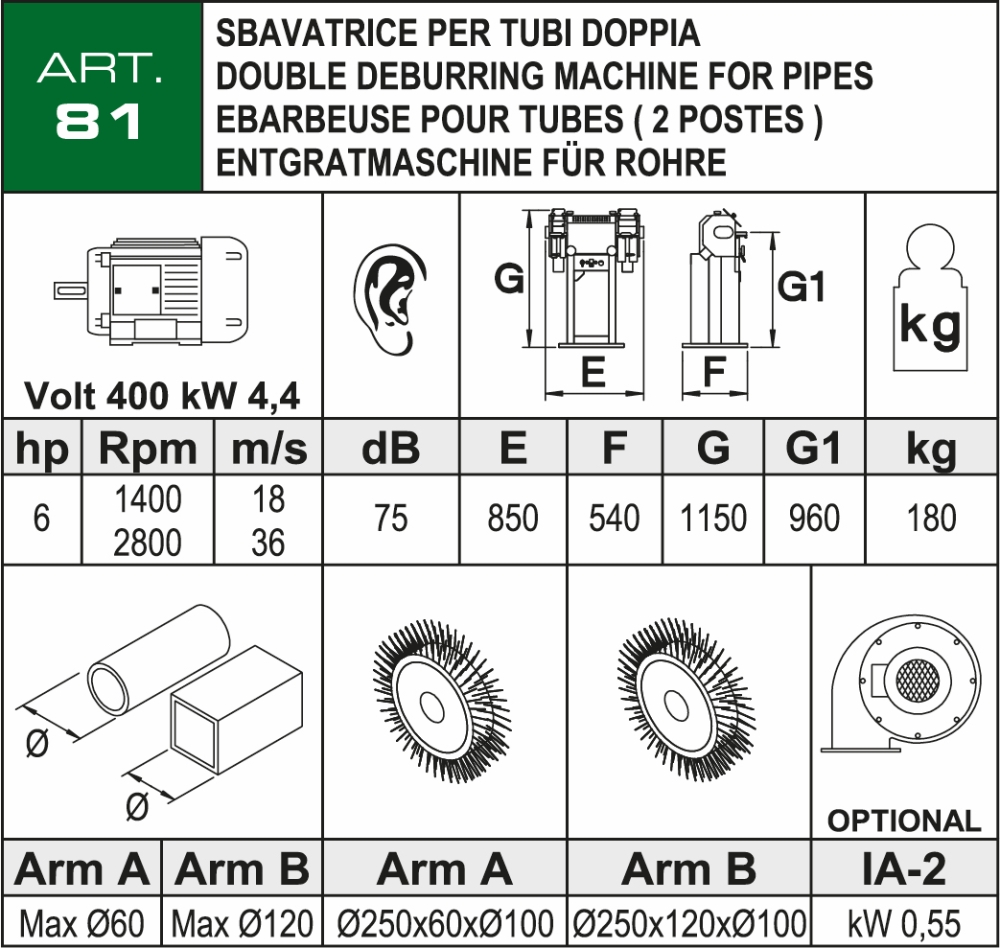

Power supply |
400 | 50 | 3 |
Volt|Hz|Phase |
Motor power |
4,4 - 3,3 ( 6,0 - 4,5 ) |
kW ( hp ) |
Motor speed |
2800 - 1400 |
rpm |
Acoustic emission |
75 |
dB |
Overall dimension (Width x Depth x Height) |
850 x 540 x H. 1150 |
mm |
Weight standard machine |
180 |
kg |
Workpiece diameter allowed |
ø 10 ÷ ø 60 |
mm |
Workpiece thickness allowed |
max. 60 |
mm |
Workpiece width allowed |
max. 60 |
mm |
Brush maximum external size |
ø 250 |
mm |
Motor shaft diameter |
ø 35 |
mm |
Brush maximum wide size |
60 |
mm |
Peripheral speed of brush |
36 - 18 |
m/sec |
Workpiece diameter allowed |
ø 61 ÷ ø 120 |
mm |
Workpiece thickness allowed |
max. 120 |
mm |
Workpiece width allowed |
max. 120 |
mm |
Brush maximum external size |
ø 250 |
mm |
Motor shaft diameter |
ø 35 |
mm |
Brush maximum wide size |
120 |
mm |
Peripheral speed of brush |
36 - 18 |
m/sec |
