ART.102

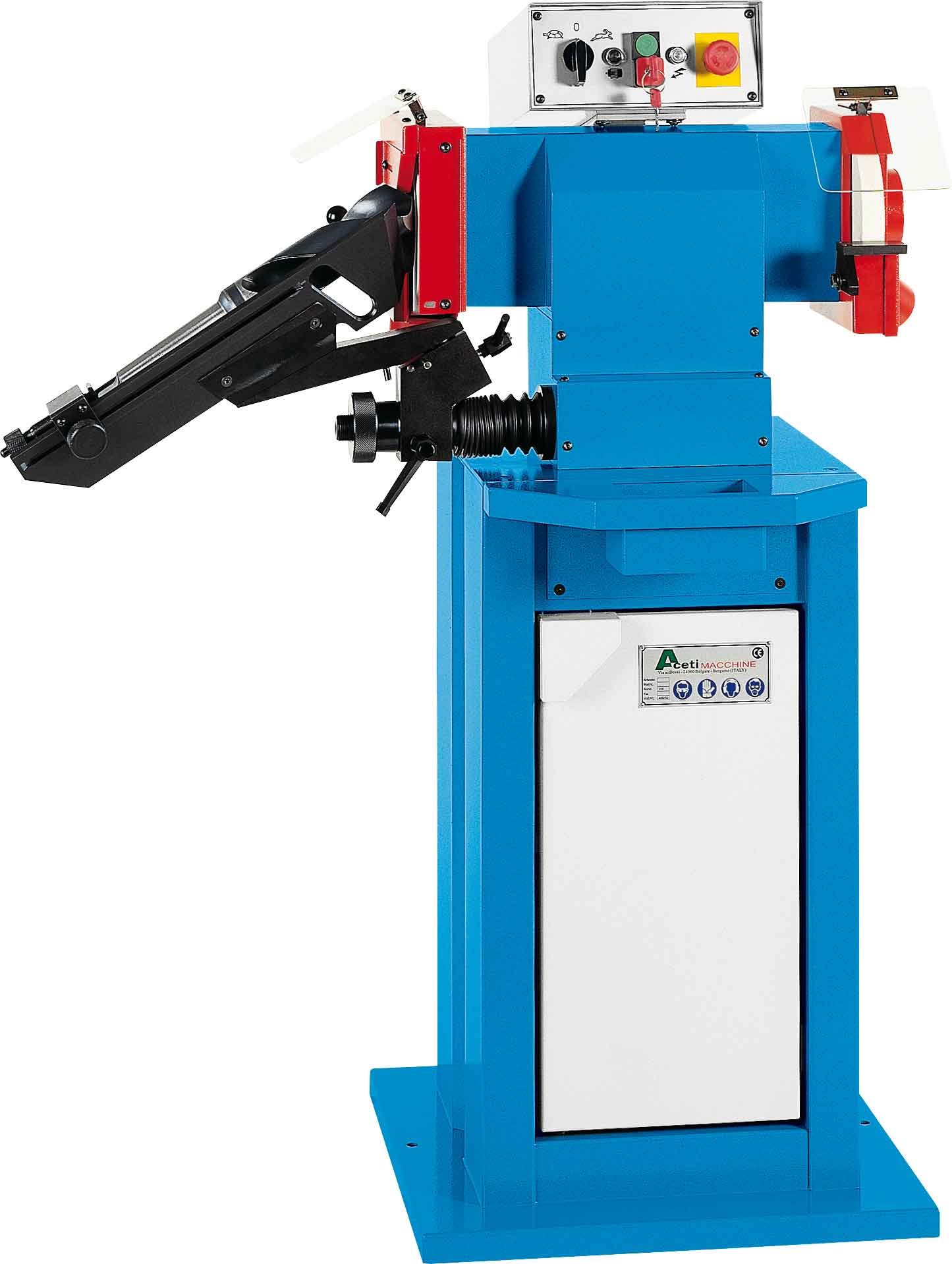

Drill sharpening machine

ART.102 - Drill sharpening machine

Video

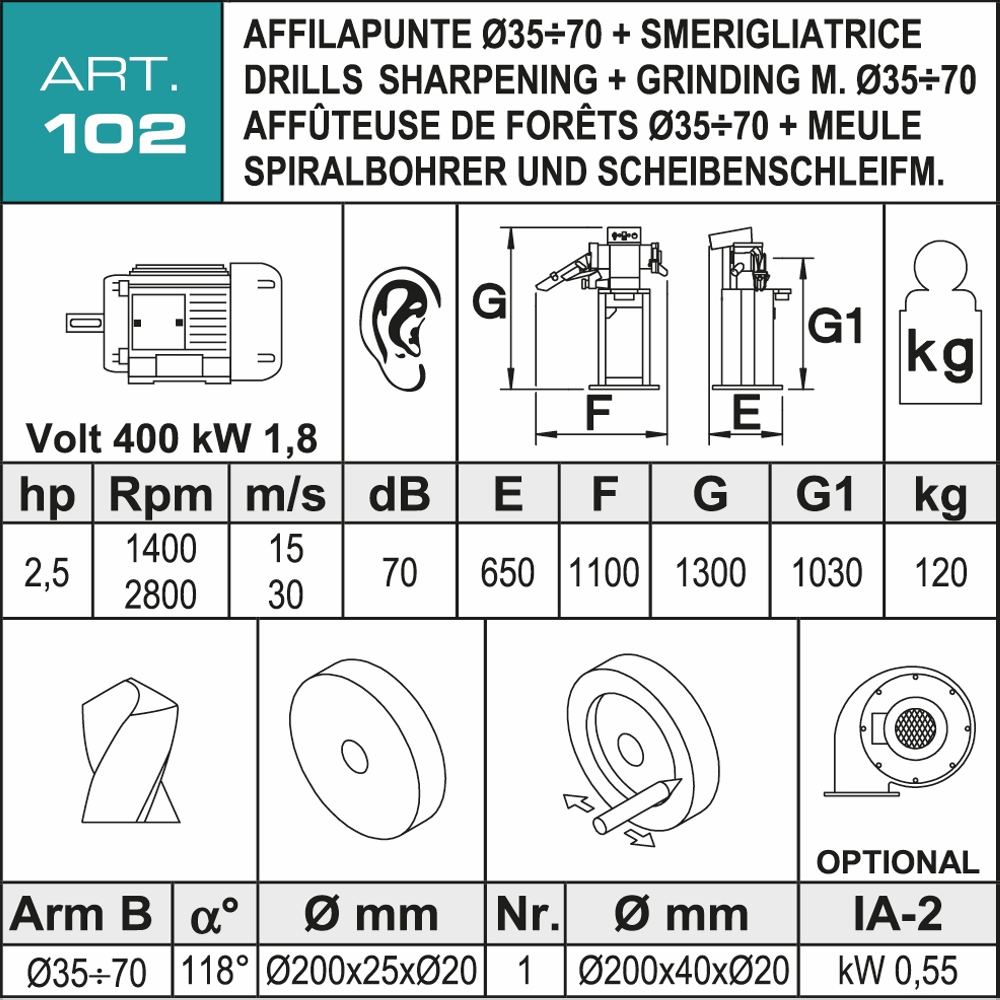

General technical info

Power supply
400 | 50 | 3
Volt|Hz|Phase
Motor power
1,9 - 1,1 ( 2,5 - 1,5 )
kW ( hp )
Motor speed
2800 - 1400
rpm
Acoustic emission
70
dB
Overall dimension (Width x Depth x Height)
1100 x 650 x H. 1300
mm
Weight standard machine
120
kg

Drill sharpener arm "B"

Drill diameter
35 ÷ 70
mm
Sharpening angle
118
°
Cup grinding wheel dimension
ø 200 x 40 x ø 20
mm
Peripheral speed
30 - 15
m/sec

Grinder unit

Grinding wheel maximum external size
ø 200
mm
Motor shaft diameter
ø 20
mm
Grinding wheel maximum wide size
25
mm
Peripheral speed
30 - 15
m/sec

Standard Equipments

Machine respect CE stamp of compliance
Machine respect CE stamp of compliance
- Machine with CE conformity mark made respecting the requirements of the most recent
   directives concerning it.
- Machine complete with instruction manual complete with CE conformity certificate, test sheet and
   exploded view with relative spare parts list.
- Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
Guarantee of European standards
Guarantee of European standards
The stringent tests guarantee that all the requisites and standards necessary to obtain the guarantee in accordance with European standards are respected. Since the project we dedicate a lot of care and attention to making the machine with high quality level to deliver machines that last over time.

Optional Equipments

IA-2: DUST EXTRACTOR - TWO CONNECTIONS
cod. IA-2:  DUST EXTRACTOR - TWO CONNECTIONS
DUST EXTRACTOR kit with two suction mouth: complete of dust filter bag in flexible aluminum pipes and hose clamps. The extractor is mounted inside the base and wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
This product data sheet does not constitute a contractual obligation.
We reserve the right to modify and/or improve our machines without prior notice.
Some photographs and illustrations are purely demonstrative and may differ from the real ones.
